Big Dog Service Bulletins

Discussion in 'Help Wanted' started by Th3InfamousI, Feb 27, 2017.

  1. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,378
    Likes Received:
    15,250
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Absolutely! But it's not much..just says clean sensor. haha

    [​IMG]



    Sent from my 2PS64 using Tapatalk

    chubs likes this.
  2. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,836
    Likes Received:
    4,530
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    I have 3rd speedo on mail....for -08! I gave up and got Dakota digital, even when I don't like the look of that. I hope it works longer than year.

    chubs and Big D Florida like this.
  3. Butch Cassidy

    Butch Cassidy Active Member

    Joined:
    Nov 20, 2016
    Messages:
    316
    Likes Received:
    417
    Trophy Points:
    63
    Location:
    Fate Texas
    My Bike(s):
    2000 Bulldog
    First Name:
    BUTCH
    :/ damn...

    chubs likes this.
  4. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,836
    Likes Received:
    4,530
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    I wonder if my -03 has any of those done.... It was just standing there on the factory all those years after all

    chubs likes this.
  5. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,378
    Likes Received:
    15,250
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Nope probably not a single damn one! Haha

    Sent from my 2PS64 using Tapatalk

    chubs and TapioK like this.
  6. Matheny 514

    Matheny 514 Active Member

    Joined:
    Apr 27, 2013
    Messages:
    834
    Likes Received:
    1,464
    Trophy Points:
    93
    Location:
    Auburn, Alabama
    My Bike(s):
    2005 Big Dog Ridgeback
    First Name:
    Justin
    That's an excellent find! I'd love to come across one of those. :old2:

    chubs likes this.
  7. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,836
    Likes Received:
    4,530
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    So I will know when the frame breaks, struts give up, tank and speedo fells off, primary starts leaking and starter eats shit! Starter is actually acting strange once in the while, have to open it next time I go to Finland. BTW does -03 have a HD starter?

    #27 TapioK, Feb 28, 2017
    Last edited: Feb 28, 2017
    chubs likes this.
  8. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,378
    Likes Received:
    15,250
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Yep any old Harley Big Twin starter will work. Stock one is 1.75KW

    Sent from my 2PS64 using Tapatalk

    chubs, Big D Florida and TapioK like this.
  9. Matheny 514

    Matheny 514 Active Member

    Joined:
    Apr 27, 2013
    Messages:
    834
    Likes Received:
    1,464
    Trophy Points:
    93
    Location:
    Auburn, Alabama
    My Bike(s):
    2005 Big Dog Ridgeback
    First Name:
    Justin
    It would definitely be great if this was in PDF form to download. :old2:

    Michael A and chubs like this.
  10. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,378
    Likes Received:
    15,250
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric

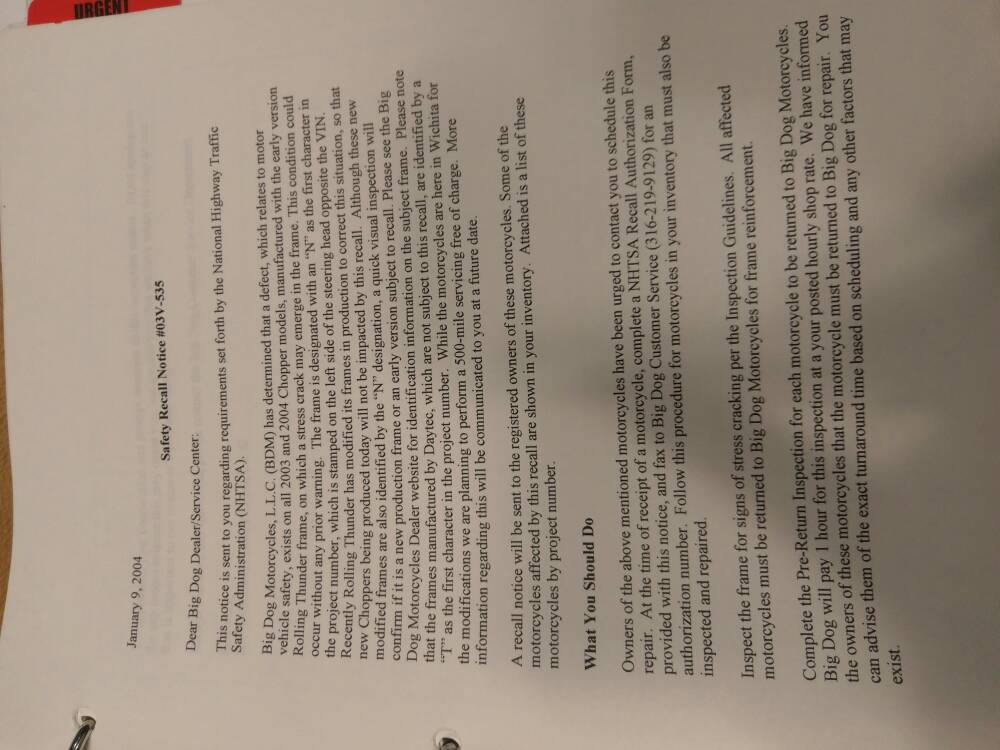

    Haha well here's your frame bulletin.

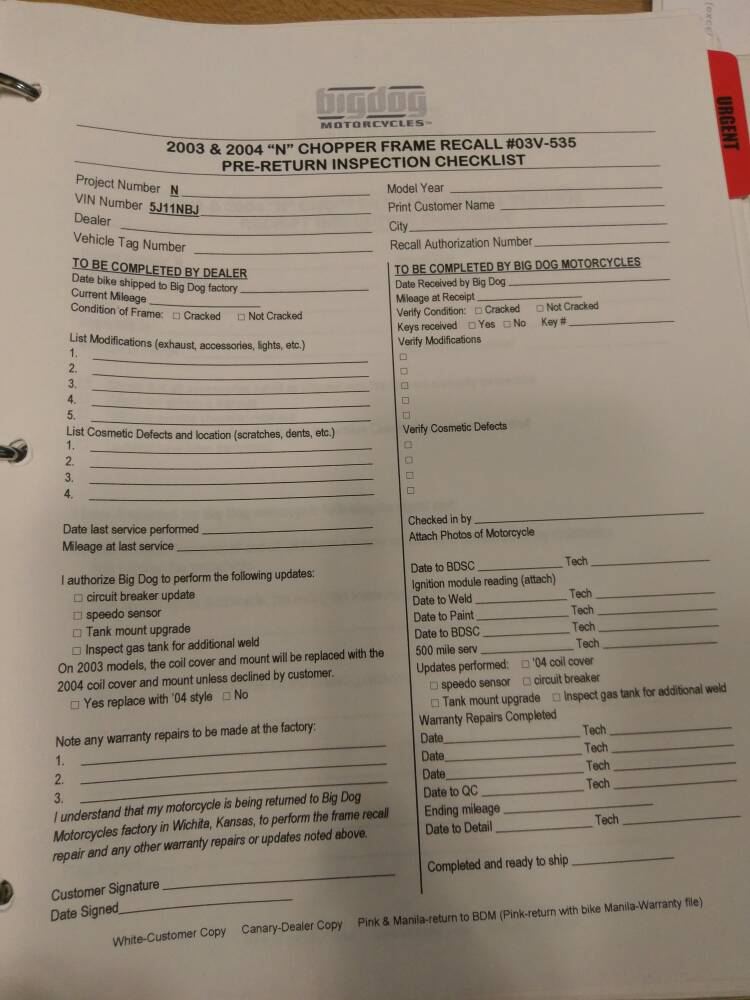

    Also, if it happens I've attached the form to fill out...you can then hang it on your refrigerator. Lol

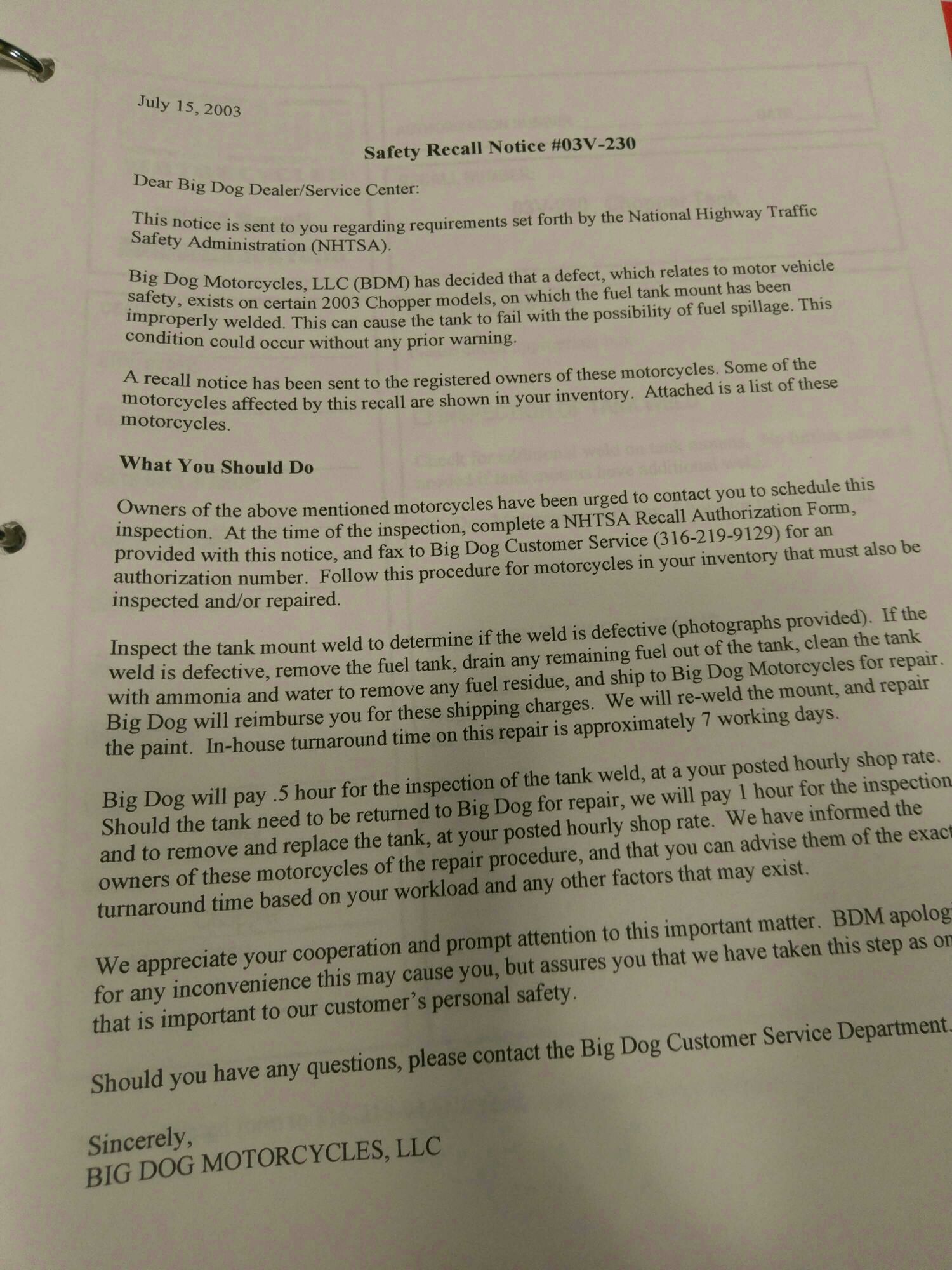

    Oh and don't forget about the fuel tank mount defect.

    [​IMG]

    [​IMG]

    [​IMG]

    Sent from my 2PS64 using Tapatalk

    TapioK and chubs like this.
  11. Biker Babe

    Biker Babe Queen Bee
    Supporting Business Calendar Participant

    Joined:
    Mar 1, 2008
    Messages:
    5,859
    Likes Received:
    2,189
    Trophy Points:
    113
    Location:
    Tulsa, Oklahoma
    My Bike(s):
    99 Fatboy, 04 Chopper
    Awww...this takes me back

    TapioK and chubs like this.
  12. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,378
    Likes Received:
    15,250
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    I combed through it tonight - I had a few PM's with people interested in some of the service bulletins, some I was never aware (Ex. 2005 Ridgeback Seat Issue). Most of the rest of us only saw the Safety mandatory ones. This is a neat little piece of history for us Die Hard Big Dog Folks. I will try and get this into PDF for reference for everyone.

    At this point most people probably have addressed most of the issues anyways wether indirectly or directly. But if anyone ever wants to know exactly the BDM recommended fixes they can find it in here.

  13. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,378
    Likes Received:
    15,250
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    If I gave away all my secrets I'd have nothing left to offer..haha.

    Unfortunately this only covers bulletins through 2007. I assume there was probably a few more later 08-10 that I don't have - Would be cool if we can complete the documentation somehow. I believe the more documentation that we can shore up for Big Dog Owners is a benefit to us all who still love the brand and there is quite a few of us who willing want to throw our legs over anything else.

    As I am typing this Im on my PC I am usually on phone. The computer just reminded me My Join Date is Sept 2009, I joined after I saw my first Big Dog it was a Pitbull 02 I think and knew I needed to have one, I was 24. I went home checked out Big Dog Bikes and knew I needed Ridgeback, black and chome. I went to Dream Machines here in Dallas and told the sales guy, black ridgeback he never called me back I think he thought I was a young kid, some bullshit tire kicker...I remember how much I was making in Salary back then and I still not sure how I pulled it off..ahah. I got lucky that Rent was really cheap as the economy was in the shitter. I also started dating a girl who moved in with me so my cheap rent was cut in half and I was getting laid. It was a win-win.

    I kept searching and found one at the dream machines in Austin. I was actually kind of mad the guy in Dallas didn't calle me to tell me their sister store had one. I sold off my CBR600 then bought my first one before I turned 25. I had my girlfriend drive me to Austin and I met her parents for the first time as they lived down there. I rolled up to her parents place on my brand new chopper at 25 years old...haha. I will never forget that.

    #33 Th3InfamousI, Feb 28, 2017
    Last edited: Feb 28, 2017
  14. Biker Babe

    Biker Babe Queen Bee
    Supporting Business Calendar Participant

    Joined:
    Mar 1, 2008
    Messages:
    5,859
    Likes Received:
    2,189
    Trophy Points:
    113
    Location:
    Tulsa, Oklahoma
    My Bike(s):
    99 Fatboy, 04 Chopper
    Love the story. Now that you mention it, my forum join day was the 29th of this month, 9 years ago. Back then, part of my job was taking the service writer's notes, including all these service bulletins, and entering them online with Big Dog.

    chubs and Hirter6Pack like this.
  15. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,378
    Likes Received:
    15,250
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Haha..well we are glad to have you here Kathy.

    The forum has changed quite a bit in my 8 years here but I think we can all say we have had the honor of meeting some very wonderful people and many of us have made some life long friends. At the end of the day I think everyone here just wants to help get someone back on the road which is about all you can ask from a friend.

    Cheers to that

    Sent from my 2PS64 using Tapatalk

    pknowles, Biker Babe, TapioK and 3 others like this.
  16. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,836
    Likes Received:
    4,530
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    Trying to figure if I am lucky or not. Seems like my struts are not about to break, but frame is.

    chubs likes this.
  17. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,378
    Likes Received:
    15,250
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Struts there was a recall in 03 too lol

    Sent from my 2PS64 using Tapatalk

    chubs likes this.
  18. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,836
    Likes Received:
    4,530
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    Yep, for the other frame! remember, DT and RT big difference! DT frame holds, but rest falls apart, RT frame falls apart but rest is OK! Except electronics, starter, speedo and some other minor parts

    chubs likes this.
  19. BroadBand

    BroadBand Since late 60's

    Joined:
    Sep 8, 2007
    Messages:
    1,608
    Likes Received:
    1,138
    Trophy Points:
    113
    Location:
    NorthWest USA
    My Bike(s):
    BD Chopper
    What I could find, for cross reference: part 1


    SERVICE BULLETINS

    Issued Bulletin Number Description

    10/1/01 SB1001

    2001 Mastiff

    ________________________________________

    10/1/01 SB1002

    2000 & 2001 Pitbulls

    ________________________________________

    10/1/01 SB1003

    Mid 1999 Husky XT and Bulldog

    ________________________________________

    10/1/01 SB1004

    TP MOTOR BREAK IN PROCEDURE

    ________________________________________

    10/1/01 SB1005

    2000, 2001 and 2002 BIG DOG MOTORCYCLES: TIMING PROCEDURE

    ________________________________________

    10/1/01 SB1006

    ALL 2001 BIG DOG MOTORCYCLES MODELS : COIL PROCEDURE

    ________________________________________

    10/1/01 SB1007

    ALL 2000 and 2001 BIG DOG MOTORCYCLES MODELS : CLUTCH ADJUSTMENT

    ________________________________________

    10/1/01 SB1008

    MID-2000 and EARLY 2001 BIG DOG MOTORCYCLES MODELS : IGNITION SWITCH REPLACEMENT

    ________________________________________

    10/1/01 SB1009

    1999 and 2000 BIG DOG MOTORCYCLES WITH PROJECT NUMBERS 1030 THROUGH 2947 : IGNITION MODULE UPDATE

    ________________________________________

    10/1/01 SB1010

    2001 MASTIFF : MASTIFF COMPENSATOR NUTS

    ________________________________________

    10/1/01 SB1011

    ALL 2001 BIG DOG MOTORCYCLES MODELS : BATTERY CONNECTION / BATTERY BOLT UPGRADE

    ________________________________________

    10/1/01 SB1012

    ALL 2001, 2002 and 2003 BIG DOG MOTORCYCLES MODELS : SPEEDOMETER MALFUNCTION

    ________________________________________

    10/1/01 SB1013

    ALL 1999 and 2000 BIG DOG MOTORCYCLES MODELS : PRIMARY GASKET UPGRADE

    ________________________________________

    10/1/01 SB1014

    2000 and 2001 BOXER, WOLF and VINTAGE SPORT MODELS : FIBERGLASS REAR FENDER TURN SIGNAL SUPPORT

    ________________________________________

    10/1/01 SB1015

    2001 HUSKY, BOXER, BULLDOG and PROSPORT MODELS : FIBERGLASS REAR FENDER BACKING PLATE

    ________________________________________

    10/1/01 SB1016

    ALL 1999 and 2000 WOLF, BULLDOG, HUSKY and PITBULL : HORN MOUNTING BRACKET

    ________________________________________

    10/1/01 SB1017

    2000 and 2001 WOLF, BULLDOG, VINTAGE SPORT, PROSPORT : TAIL LIGHT ELECTRICAL SPIKE ADVISORY

    ________________________________________

    10/1/01 SB1018

    SOME 2001 and 2002 BIG DOG MOTORCYCLES WITH TP ENGINES : TP MOTOR ENGINE-TO-PRIMARY LEAK

    ________________________________________

    10/1/01 SB1019

    2001 BIG DOG MOTORCYCLES WITH TP MOTORS AND S&S CARBS WITH A SINGLE INSULATOR BLOCK BETWEEN THE CARBERATOR AND MANIFOLD

    ________________________________________

    1/18/02 SB1020

    ALL TP MOTORS : TP HEAD AND CYLINDER GASKET SURFACES

    ________________________________________

    3/15/02 SB1021

    ALL 2001 and 2002 BIG DOG MOTORCYCLES : BENT MAINSHAFT ADVISORY

    ________________________________________

    3/15/02 SB1022

    2002 BOXER, BULLDOG, HUSKY, MASTIFF, PROSPORT and WOLF : SEAT FASTENER UPDATE

    ________________________________________

    11/1/02 SB1023A

    All Big Dog motorcycles equipped with “Total Performance” (TP) engines : HEAD OR BASE GASKET OIL SEEPAGE - TP ENGINES

    ________________________________________

    11/1/02 SB1024

    2003 Big Dog Choppers (Projects N3001 through N3077) : SWINGARM CONTACT WITH REAR FENDER

    ________________________________________

    11/1/02 SB1025

    2003 Big Dog Choppers (Projects N3001 through N3083) : CHOPPER FRONT FORK ADJUSTMENT

    ________________________________________

    11/1/02 SB1026

    2003 Big Dog Mastiff (M3002 – M3084) and Chopper (N3001 – N3091) : DRIVE UNIT ALIGNMENT

    ________________________________________

    10/1/03 SB1028

    2003 Big Dog Choppers (with Project Numbers N and T) : 2003 CHOPPER TANK MOUNT UPGRADE

    ________________________________________

    10/1/03 SB1029

    2003 Big Dog Mastiff and PitBull : 2003 DASH REINFORCEMENT

    ________________________________________

    10/1/03 SB1030

    All 2003 models : 2003 SPEEDOMETER SENSORS

    ________________________________________

    10/1/03 SB1031

    2003 Big Dog Choppers with Daytec Frames (Projects T3001 – T3132) : DAYTEC CHOPPER STRUTS

    ________________________________________

    10/1/03 SB1032

    2003 Models with the exception of Boxer : 2003 INNER PRIMARY LEAK

    ________________________________________

    11/1/03 SB1033

    2002 and 2003 Boxer : 2002 & 2003 BOXER TAG BRACKET UPGRADE

    ________________________________________

    3/1/04SB1034

    All 2004 Models built prior to November 1, 2003. : 2004 FRONT BRAKE MASTER CYLINDER COVER

    GASKET SEALING

    ________________________________________

    3/1/04SB1035

    Early 2004 models, all 2003 models, and late production 2002 5-speed models with left

    side drive. : LEFT SIDE DRIVE 2ND GEAR SHIFTING ENGAGEMENT

    ________________________________________

    5/15/04 SB1036

    All 2003 Models when installing optional compression releases. : ADDING ELECTRONIC SOLENOID COMPRESSION RELEASES

    ________________________________________

    7/12/04 SB1037

    2004 Pitbull (H4001 through H4252) and Ridgeback (R4001 through R4715) : RE-ROUTING 2004 REAR FENDER WIRE HARNESS

    ________________________________________

    7/12/04 SB1038

    All 2004 Models : 2004 FRONT MASTER CYLINDER SEEPAGE

    ________________________________________

    7/12/04 SB1040

    All 2004 Models : WATER SEEPAGE INTO CONNECTOR 23/24

    ________________________________________

    9/15/04 SB1042

    All 2004 Models : EHC REPLACEMENT

    ________________________________________

    9/15/04 SB1043

    All model engine cases except full polish : ENGINE CASE DISCOLORATION

    ________________________________________

    9/30/04 SB1044

    2003 and 2004 models with 250 rear tires. Pitbull, Ridgeback, Mastiff, Chopper and Daytec Chopper : Problem – Belt and Chassis Issues

    ________________________________________

    9/30/04 SB1044A

    2003 and 2004 models with 250 rear tires. : Attachment A

    ________________________________________

    9/30/04 SB1044B

    2003 and 2004 with 250 rear tires. : Attachment B

    ________________________________________

    9/30/04 SB1044C

    2003 and 2004 with 250 rear tires. : Attachment C

    ________________________________________

    9/30/04 SB1044D

    2003 and 2004 models with 250 rear tires. : Attachment D

    ________________________________________

    9/30/04 SB1044E

    2003 and 2004 models with 250 rear tires. : Attachment E

    ________________________________________

    9/30/04 SB1044F

    2003 and 2004 models with 250 rear tires. : Attachment F

    ________________________________________

    9/30/04 SB1044G

    2003 and 2004 models with 250 rear tires. : Attachment G

    ________________________________________

    9/30/04 SB1044H

    2003 and 2004 models with 250 rear tires. : Attachment H

    ________________________________________

    10/25/04 SB1045

    All models with PM calipers utilizing BDM180-00139 brake pads. : Brake Pad / Rotor - Inspection and Replacement

    ________________________________________

    10/15/04 SB1046

    2004 Ridgeback with BDM130-00144 fork assembly / 2004 N & T Choppers with BDM130-00145 fork assembly : Fork Dust Cover O-ring Nonconformance

    ________________________________________

    11/5/04 SB1048

    2005 Models shipped prior to 11/01/04 : Problem – Tachometer Printed Circuit Board (PCB) Failures

    ________________________________________

    12/1/04 SB1049

    All 2004 – 2005 models : Issue – Headlight Circuit Failure Due to Aftermarket Lamp Installation and

    Misdiagnosis of Cause

    ________________________________________

    12/15/04 SB1050

    2005 Mastiff models limited to project numbers M5001 to M5064 : Throttle Cable – Fuel Tank Contact

    ________________________________________

    1/15/05 SB1052

    2003 and 2004 models : Starter Troubleshooting

    ________________________________________

    9/23/05 SB1054

    All 2005 and 2006 models manufactured prior to 8 AUG 2005. : Clutch Slippage

    ________________________________________

    6/2/06SB1054A

    2005 models produced before 15 JAN 2005, up to and including transmission case number W124030. : BAKER 6-SPEED MAINSHAFT SNAP RING

    ________________________________________

    7/10/05 SB1056

    All 2005 models : Exhaust End Cap Resonating Rattling Noise

    ________________________________________

    7/10/05 SB1057

    All : Loctite® Product Improvement

    ________________________________________

    8/22/05 SB1058

    All 2005 models produced with a BD4019-05A, BD4019-05B harness, 3/8/2005

    date code : IGNITION COIL HARNESS DISCONNECT

    ________________________________________

    9/10/05 SB1059

    2005 models manufactured before July 8, 2005. : PRIMARY CHAIN TENSIONER SHOE RETAINER REPLACEMENT

    ________________________________________

    9/10/05 SB1060

    2005 Ridgeback : SEAT PAN CONTACT WITH BATTERY

    ________________________________________

    9/23/05 SB1062

    All 2005 Balance-Drive Systems. : Primary Venting and Sealing

    ________________________________________

    9/23/05 SB1063

    All 2005 models with stock exhaust. : Muffler Separation at Inlet Pipes

    ________________________________________

    3/27/06 SB1065A

    All 2005 models and 2006 models built through 23 MAR 2006. : REVISED CLUTCH PUSHROD REPLACEMENT

    ________________________________________

    12/8/05 SB1067

    All 2006 Ridgeback and K-9 Models produced on or before 17 OCT 2005. : WIRING HARNESS WEAR UNDER FUEL TANK

    ________________________________________

    12/15/05 SB1068

    MULTIPLE MODELS / YEARS : ENGINE CRANKCASE OIL SEEPAGE

    ________________________________________

    11/3/06 SB1069A

    All 2005 models and early production 2006 models produced on or before 26 SEP 2005.: REVISED INTERMITTENT PRINTED CIRCUIT BOARD OPERATION

    ________________________________________

    1/4/06SB1070

    All 2006 Ridgeback models assembled after 1 SEP 2005 and shipped before 4 JAN 2006. (Clutch cable is routed underneath the backbone and to the inside of the downtube.) Models assembled before 1 SEP 2005 are not affected. : CLUTCH CABLE GUIDE REPLACEMENT

    ________________________________________

    12/21/05 SB1071

    2006 Ridgeback and K-9 models. : RIDGEBACK AND K-9 TANK INSTALLATION

    ________________________________________

    1/12/06 SB1073

    All hidden-shock models with Mean Mother exhaust pipes installed. : MEAN MOTHER EXHAUST BRACKETS

    ________________________________________

    4/27/06 SB1074

    All 2005 model year motorcycles and all 2006 model year motorcycles produced

    on or before 16 FEB 2006. : PRIMARY CHAIN ALIGNMENT

    ________________________________________

    5/3/06SB1075

    All 2004, 2005, and 2006 models. : DIELECTRIC GREASE ADDITION TO CONNECTORS

    ________________________________________

    4/13/06 SB1076A

    All 2005 and 2006 models with stock exhaust pipes installed. : REVISED MUFFLER HEAT SHIELD SHIMS

    6/16/06 SB1077

    All 2004 and 2005 models, and 2006 models produced on or before 30 MAR 2006. : HEADLIGHT HARNESS MELTING

    ________________________________________

    4/3/06SB1078

    All 2004, 2005 and 2006 models built through 22 MAR 2006. : EHC CONTACT IMPROVEMENT

    ________________________________________

    11/10/06 SB1079A

    All 2005 models.: REVISED UPPER ENGINE MOUNT SCREW RETENTION

    ________________________________________

    6/30/06 SB1082A

    2006 and 2007 Big Dog Motorcycles. : PRIMARY INSPECTION COVER SEALING IMPROVEMENT

    ________________________________________

    6/23/06 SB1083

    2006 BDM K-9 models, serial number YB60001 through YB60014. : SWINGARM PAINT CHIPPING

    ________________________________________

    6/2/06SB1084

    All 2005 and later Balance-Drive Transmissions. : BAKER TRANSMISSION SERIAL NUMBER CODES

    ________________________________________

    6/30/06 SB1086

    2006 Big Dog Motorcycles. : SETTING PRIMARY CHAIN TENSION

    ________________________________________

    8/4/06SB1087

    All 2007 K-9 units listed (See Attachment A). : 2007 K-9 SIDE COVER REINFORCEMENT EDGE TRIM

    ________________________________________

    7/28/06 SB1088A

    2004, 2005 and 2006 Big Dog Motorcycles. : HORN HARNESS WIRE REINFORCEMENT

    ________________________________________

    8/4/06SB1089

    All 2004 and 2005 models, and all 2006 models built on or before 31 MAY 2006. : HANDLEBAR BUSHINGS REPLACEMENT

    ________________________________________

    8/25/06 SB1090

    All 2005 and 2006 models produced on or before 22 JUL 2006. : COUNTERSHAFT WASHER REPLACEMENT

    ________________________________________

    9/8/06SB1091

    All 2004, 2005, 2006 models, and all 2007 models produced on or before 31 AUG 2006. : TACHOMETER CIRCUIT BOARD AND/OR MOISTURE SEAL REPLACEMENT

    ________________________________________

    5/18/07 SB1092

    BULLDOG – All 2005 and 2007 Models. / CHOPPER – All 2005, 2006 and 2007 Models. / MASTIFF and PITBULL – All 2006 and 2007 Models. / RIDGEBACK – All 2005 and 2006 Models. / K-9 – All 2006 and 2007 Models. : REVISED SPEEDOMETER AND MOUNT

    ________________________________________

    5/23/07 SB1093

    All 2007 Bulldog models. : TACHOMETER RING IMPROVEMENT

    ________________________________________

    10/12/07 SB1097

    All 2007 and 2008 EFI models built on or before 10 OCT 2007 : SPARK PLUG WIRE REPLACEMENT

    ________________________________________

    2/2/07SIL-0001

    SERVICE INFORMATION LETTER - CURRENT EHC INFORMATION SHEET

    ________________________________________

    Butch Cassidy likes this.
  20. BroadBand

    BroadBand Since late 60's

    Joined:
    Sep 8, 2007
    Messages:
    1,608
    Likes Received:
    1,138
    Trophy Points:
    113
    Location:
    NorthWest USA
    My Bike(s):
    BD Chopper
    Part 2

    2/2/07SIL-0002

    EHC COMMUNICATION ISSUE

    Issued Bulletin Number Description

    4/1/2002 02V-016

    Big Dog Motorcycles, LLC (BDM) has decided that a defect, which relates to motor vehicle

    safety, exists in the rear fender front mounting tabs on certain 1998 and 1999 Pitbull model

    motorcycles.

    The rear fender front mounting tabs securing the rear fender to the frame can fracture, causing

    the rear fender to break away and drop onto the rear tire, resulting in tire damage and unintended braking action. This condition could occur without any prior warning. A recall notice has been sent to the owners of these motorcycles.

    ________________________________________

    12/16/2002 02V-089

    This notice is sent to you regarding requirements set forth by the National Highway Traffic

    Safety Administration (NHTSA). Big Dog Motorcycles, LLC (BDM) had earlier contacted you

    concerning this campaign, which was initially undertaken in April of 2002. The remedy at that

    time involved either replacing the fuel tanks on certain 2002 Model Pitbull, Boxer, Husky, and

    Mastiff motorcycles, or shimming the tanks and remounting them on the subject motorcycles.

    The revised remedy here involves removing the fuel tanks, replacing the mounting grommets and related hardware, and remounting the tanks.

    ________________________________________

    4/1/2002 02V-090

    Big Dog Motorcycles, LLC (BDM) has decided that a defect, which relates to motor vehicle

    safety, exists in the fuel shutoff valve on certain 2001 and 2002 Big Dog motorcycles.

    The fuel valve’s outlet nipple, which the fuel line attaches to, can pull out of the fuel valve

    allowing fuel to exit onto the motor and primary drive. This condition could occur without any

    prior warning.

    ________________________________________

    11/15/2002 02V-285

    Big Dog Motorcycles, LLC (BDM) has determined that a defect, which relates to motor vehicle

    safety, exists in the stainless steel handlebars on certain 2002 Big Dog motorcycles.

    The weld on the handlebar may break, limiting the ability to use the hand controls. This

    condition could occur without any prior warning.

    ________________________________________

    7/15/2003 03V-230

    Big Dog Motorcycles, LLC (BDM) has decided that a defect, which relates to motor vehicle

    safety, exists on certain 2003 Chopper models, on which the fuel tank mount has been

    improperly welded. This can cause the tank to fail with the possibility of fuel spillage. This

    condition could occur without any prior warning.

    ________________________________________

    1/09/2004 03V-535

    Big Dog Motorcycles, L.L.C. (BDM) has determined that a defect, which relates to motor

    vehicle safety, exists on all 2003 and 2004 Chopper models, manufactured with the early version Rolling Thunder frame, on which a stress crack may emerge in the frame. This condition could occur without any prior warning. The frame is designated with an “N” as the first character in the project number, which is stamped on the left side of the steering head opposite the VIN.

    Recently Rolling Thunder has modified its frames in production to correct this situation, so that

    new Choppers being produced today will not be impacted by this recall. Although these new

    modified frames are also identified by the “N” designation, a quick visual inspection will

    confirm if it is a new production frame or an early version subject to recall. Please see the Big

    Dog Motorcycles Dealer website for identification information on the subject frame. Please note that the frames manufactured by Daytec, which are not subject to this recall, are identified by a “T” as the first character in the project number.

    ________________________________________

    4/12/2004 04V-137

    Big Dog Motorcycles, L.L.C. (Big Dog Motorcycles) has determined that a defect, which relates

    to motor vehicle safety, exists on all 2004 models, manufactured prior to March 17, 2004. The

    rear master cylinder piston may be improperly sized, which could cause the rear brakes to drag

    or lock-up. This condition could occur without any prior warning. At this time Big Dog

    Motorcycles has no reports of any accidents or injuries related to this condition.

    ________________________________________

    4/12/2004 04V-164

    Big Dog Motorcycles, L.L.C. (Big Dog Motorcycles) has determined that a defect, which relates

    to motor vehicle safety, exists on all 2004 models, manufactured prior to March 27, 2004. A

    screw may become loose in the handlebar control due to the lack of a lock washer, which could

    cause the throttle or front brake control to bind. This condition could occur without any prior

    warning. At this time Big Dog Motorcycles has no reports of any accidents or injuries related to

    this condition.

    ________________________________________

    12/27/2004 04V-523

    Big Dog Motorcycles, L.L.C. (Big Dog Motorcycles) has determined that a defect, which relates to motor vehicle safety, exists on all 2004 models. The kickstand spring attaching stud may break off allowing the kickstand to deploy into the extended position and cause a crash. This condition could occur without any prior warning. At this time Big Dog Motorcycles has no reports of any accidents or injuries related to this condition.

    ________________________________________

    05-432

    REVISED 2005 WHEEL ASSEMBLIES REMEDY. All 2005 models built on or before June 1, 2005

    ________________________________________

    3/11/2005 05V-052

    Big Dog Motorcycles, L.L.C. (Big Dog Motorcycles) has determined that a defect, which relates

    to motor vehicle safety, exists on all 2005 models manufactured prior to February 11, 2005. The

    internal voltage regulator in the electronic harness control is susceptible to damage by voltage

    transients in the ignition switch circuit resulting in a total shutdown of the vehicle’s electrical

    system. This condition could occur without any prior warning. At this time Big Dog

    Motorcycles has no reports of any accidents or injuries related to this condition.

    ________________________________________

    4/26/2005 05V-149

    Big Dog Motorcycles, L.L.C. (Big Dog Motorcycles) has determined that a defect, which relates

    to motor vehicle safety, exists on all 2005 models manufactured prior to January 22, 2005. Some of these motorcycles were built using a 7/8” –14 x 1/2” primary drive sprocket nut. Under

    certain conditions, this sprocket nut could back off the engine main shaft. This condition could

    occur without any prior warning. At this time Big Dog Motorcycles has no reports of any

    accidents or injuries related to this condition.

    ________________________________________

    5/23/2005 05V-233

    Big Dog Motorcycles, L.L.C. (Big Dog Motorcycles) has determined that a defect, which relates

    to motor vehicle safety, exists on all 2005 Bulldog models manufactured between March 29,

    2005 and May 12, 2005. The front fender brackets could fail, allowing the front fender to detach and cause a crash. This condition could occur without any prior warning. At this time Big Dog Motorcycles has no reports of any accidents or injuries related to this condition.

    ________________________________________

    4/18/2006 06V-122

    Big Dog Motorcycles, LLC (Big Dog Motorcycles) notified you of the 2005 Bulldog Fender Bracket recall campaign, No. 05V-233, initially undertaken in May of 2005. Big Dog Motorcycles has determined that the replacement front fender brackets remedy provided in this recall may not sufficiently address the defect condition noted in our original defect notice. Accordingly, Big Dog Motorcycles is modifying the remedy in the campaign to include a stronger replacement bracket that it believes will more appropriately address the front mounting issue. Big Dog Motorcycles is also expanding the recall to include all 2005 model year Bulldog motorcycles, including those built subsequent to the production period covered by the original notice.

    ________________________________________

    06V-301

    The purpose of this recall is to correct vibration issues with the ignition module mounting system of the listed models.

    Install Ignition Module Relocation Kit P/N 203-000018-00.

    ________________________________________

    R06V-301

    The purpose of this supplement is to identify potential 2005 models covered under the Ignition Module Relocation Recall, #06V-301, that could experience premature side cover wear when the Ignition Module Relocation Kit is installed. Premature side cover wear is a cosmetic issue that does not pose a safety risk to the rider. The relocation kit is still an adequate remedy for the previously identified safety risk that requires recall #06V-301.

    ________________________________________

    06V-305

    MPORTANT: Replace the EHC of ANY

    Big Dog Motorcycle model having an EHC, P/N 170-000001-00 with clear, gel-type potting material. Remove that EHC and replace with P/N 171-000010-00.

    NOTE: This recall does not affect EHC’s P/N 170-000001-00 with black potting material.

    ________________________________________

    1/16/2006 05E-082

    Big Dog Motorcycles, L.L.C., (Big Dog Motorcycles) has decided that a defect, which relates to

    motor vehicle safety, exists with respect to certain Big Dog Motorcycles’ accessory pillion pads

    when used in combination with Flat Matte, (“primer”) finished motorcycles. The subject pillion

    pads are identified as Part No. BDM230-00195, BDM230-00194, and BDM230-00081. Our

    records indicate that you may have these pillion pads in your inventory, or, you may have primer painted motorcycles in your inventory.

    ________________________________________

    06V-389

    MODELS: All 2005 Bulldog, N-Chopper units and Mastiff; 2006 N-Chopper and Mastiff units manufactured before April 12, 2006.

    SYMPTOM: Right side, long pivot bolts are bending and may break.

    ________________________________________

    07V-355

    BULLDOG TACHOMETER CIRCUIT BOARD IMPROVEMENT INSTRUCTIONS

    IDENTIFICATION: All 2007 Bulldog models that have not had SB-1093 performed.

    ________________________________________

    8/21/2007 07V-356

    Big Dog Motorcycles, L.L.C. (Big Dog Motorcycles) has determined that there is a safety defect in the voltage

    regulator installed on certain 2005 and 2006 model motorcycles. Voltage regulators on these motorcycles with a manufacture date code of 04 or 05 may be susceptible to developing a short circuit which, in turn, may result in a fire without prior warning.

    ________________________________________

    8/29/2007 07E-058

    Big Dog Motorcycles, L.L.C. (Big Dog Motorcycles) has determined that there is a potential safety defect in the following sissy bar assemblies:

    223-000001-00 2006 K-9

    223-000001-01 2006 K-9, 2007 K-9, and 2007 Mastiff

    223-000002-00 2006 K-9

    223-000002-01 2006 K-9, 2007 K-9, and 2007 Mastiff

    223-000007-01 2007 K-9, 2007 Mastiff, and 2007 Bulldog

    223-000008-01 2007 K-9, 2007 Mastiff, and 2007 Bulldog

    Spikes05, chubs and Big D Florida like this.

Share This Page
