Bike throwing up!

Discussion in 'Technical' started by TapioK, Feb 1, 2018.

  1. john sachs

    john sachs Active Member

    Joined:
    Nov 6, 2008
    Messages:
    778
    Likes Received:
    692
    Trophy Points:
    93
    Location:
    Deltona, Fl
    My Bike(s):
    harleys
    Do you still have the front head hose barb connected to the intake manifold ? If so that can cause the problem you have.
    The 1 way valve (black & white valve in line)on the hose of the rear head is very easy to check if it's working. Blow through 1 end, and then the other end. You should be able to get air out of a 1 end only. I've never seen one that was bad yet.
    John

  2. SMCT

    SMCT Active Member

    Joined:
    Nov 7, 2015
    Messages:
    533
    Likes Received:
    1,322
    Trophy Points:
    93
    Location:
    North East
    My Bike(s):
    06 K9, H-D Dyna Wide Glide
    First Name:
    Andy
    Too much oil in the engine. Most likely it was over filled.

  3. SMCT

    SMCT Active Member

    Joined:
    Nov 7, 2015
    Messages:
    533
    Likes Received:
    1,322
    Trophy Points:
    93
    Location:
    North East
    My Bike(s):
    06 K9, H-D Dyna Wide Glide
    First Name:
    Andy
    It is very, very easy to over fill these engines, and that's due to 2 inherent issues. The first is the thick oil and checking the oil level when it's not fully heat soaked. The second being the weak scavenge side of the oil pump. Due to the inherent flaws of these engines, the best way for accuracy on oil amount, is to completely drain the system dry, then put in 2 3/4 quarts total. If you check these engines idling and on the kick stand, you highly run the risk of over filling, because at idle, the scavenge side of the pump and gear rpms is not enough to put the oil back in the tank. You actually should raise the idle (off idle) so that the scavenge side starts to put it back into the tank, then you can check it. So, in a case such as described herein this topic, if the bike is idling and on it's kickstand, the majority of the oil can be sitting in the crankcase, giving the end user a false sense that his engine is low on oil. So, oil then is added, and then on a ride with engine rpms above idle it goes back into the tank at a higher level, but it doesn't puke it at that point. The point it pukes it, is when it's back at idle (now all of the oil and excess is in the crankcase) then off idle and moving not giving it enough time to get back into the tank, the oil runs up the jugs, and pukes it into the over flow tube, of which should never be hooked into the air cleaner because then all that oil gets sucked up in through the carb and burned and the rest just pours all over the side of the bike. The oil that gets sucked up into the carb and burned in the chamber will emit white smoke.

  4. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,948
    Likes Received:
    4,725
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    That is one option, I was busy and lazy and did let a shop change fluids... I have changed my oils there my self before and didn’t even think the mechanic didn’t remember or know the correct amount... well, I’ll see

  5. BigDogRick

    BigDogRick Active Member
    Supporting Member

    Joined:
    Sep 16, 2012
    Messages:
    550
    Likes Received:
    564
    Trophy Points:
    93
    Location:
    Phoenix, AZ
    My Bike(s):
    2000 Big Dog Vintage Classic, 2008 HD Fatboy
    First Name:
    Rick
    Been there several times. I hate to see a trip interrupted by something five minutes and a turkey baster can solve.


    Sent from my iPhone using Tapatalk Pro

  6. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,948
    Likes Received:
    4,725
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    Yep. Should I just block the manifold and route the front head hose to ground?

  7. john sachs

    john sachs Active Member

    Joined:
    Nov 6, 2008
    Messages:
    778
    Likes Received:
    692
    Trophy Points:
    93
    Location:
    Deltona, Fl
    My Bike(s):
    harleys
    No.
    Call me, and I'll tell you what to do if that's your problem.
    John

  8. Ribs

    Ribs Live Free & Ride Hard

    Joined:
    Nov 24, 2016
    Messages:
    153
    Likes Received:
    206
    Trophy Points:
    43
    Location:
    Ward.AR
    My Bike(s):
    Bigdog Bulldog 2000
    First Name:
    Matt
    No one is mentioning the wrong oil filter.

    Did you just change out the oil filter?

    My guess is the wrong one was put back in. Looks the same thou.

    If you look into the top of your old oil filter and see no black rubber seal inside the filter behind the little holes.

    Now check the filter you have on now
    And it has the black rubber your using the wrong filter.
    And it causes crank case pressure which will blow oil out your breather tube.

    The oil is suppose to flow back into the reservoir.

    And that black rubber is blocking it and causing your problem.


    If your oil return lines are outside your engine.
    The oil is used then filtered. Our the other way around.

    If your oil return lines are internal then
    The oil filtered then used.

    And that determines which oil filter you need too use.

    I will get a photo and post to show
    the difference.
    Tomorrow
    Got to sleep now.

    Also your number two cylinder may have allot of oil in it remove plug and turn it over too clear the oil.
    Clean it out with a little fuel

    Ribs






    Sent from my SM-N950U using Tapatalk

  9. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,948
    Likes Received:
    4,725
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio

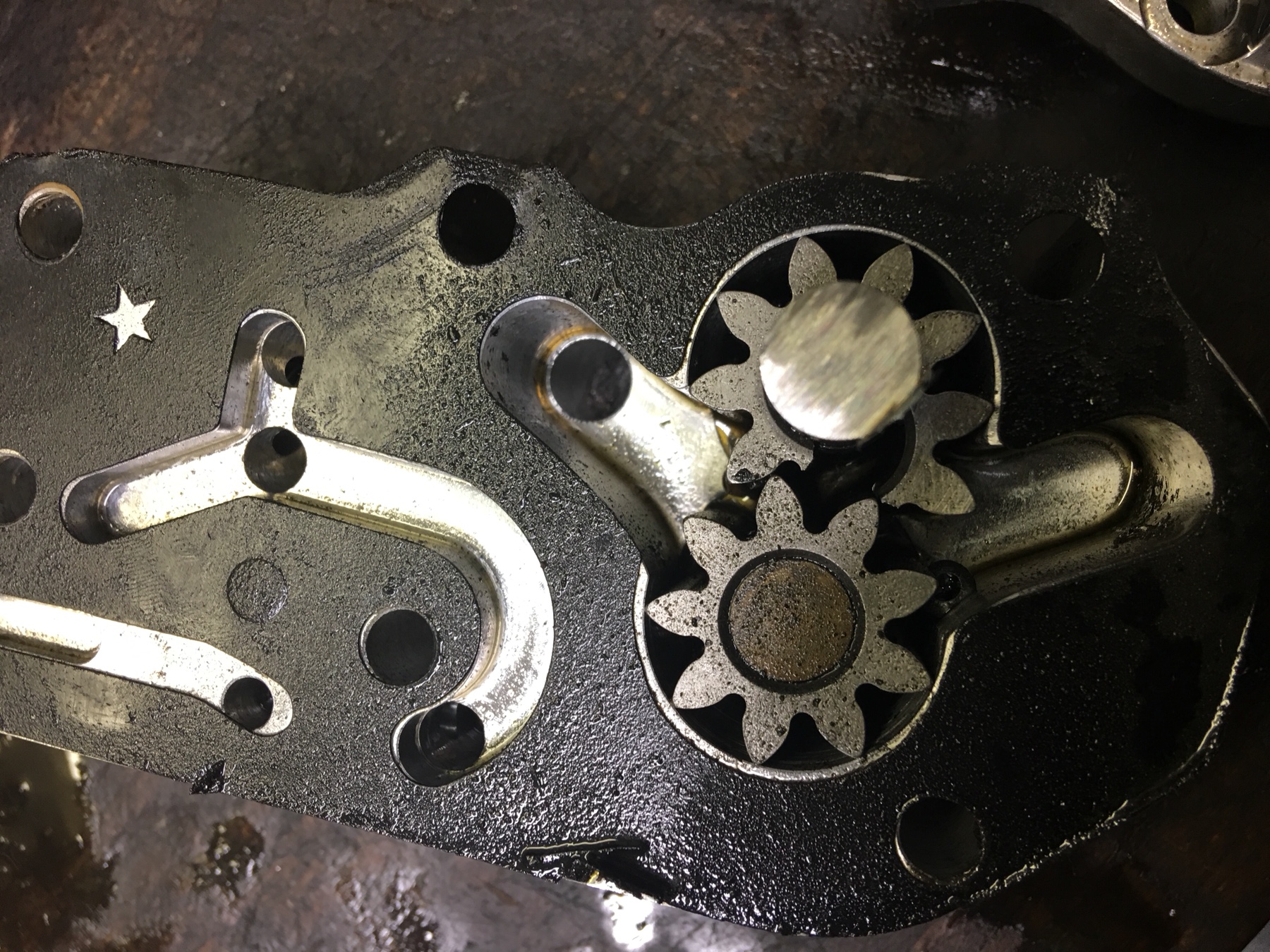

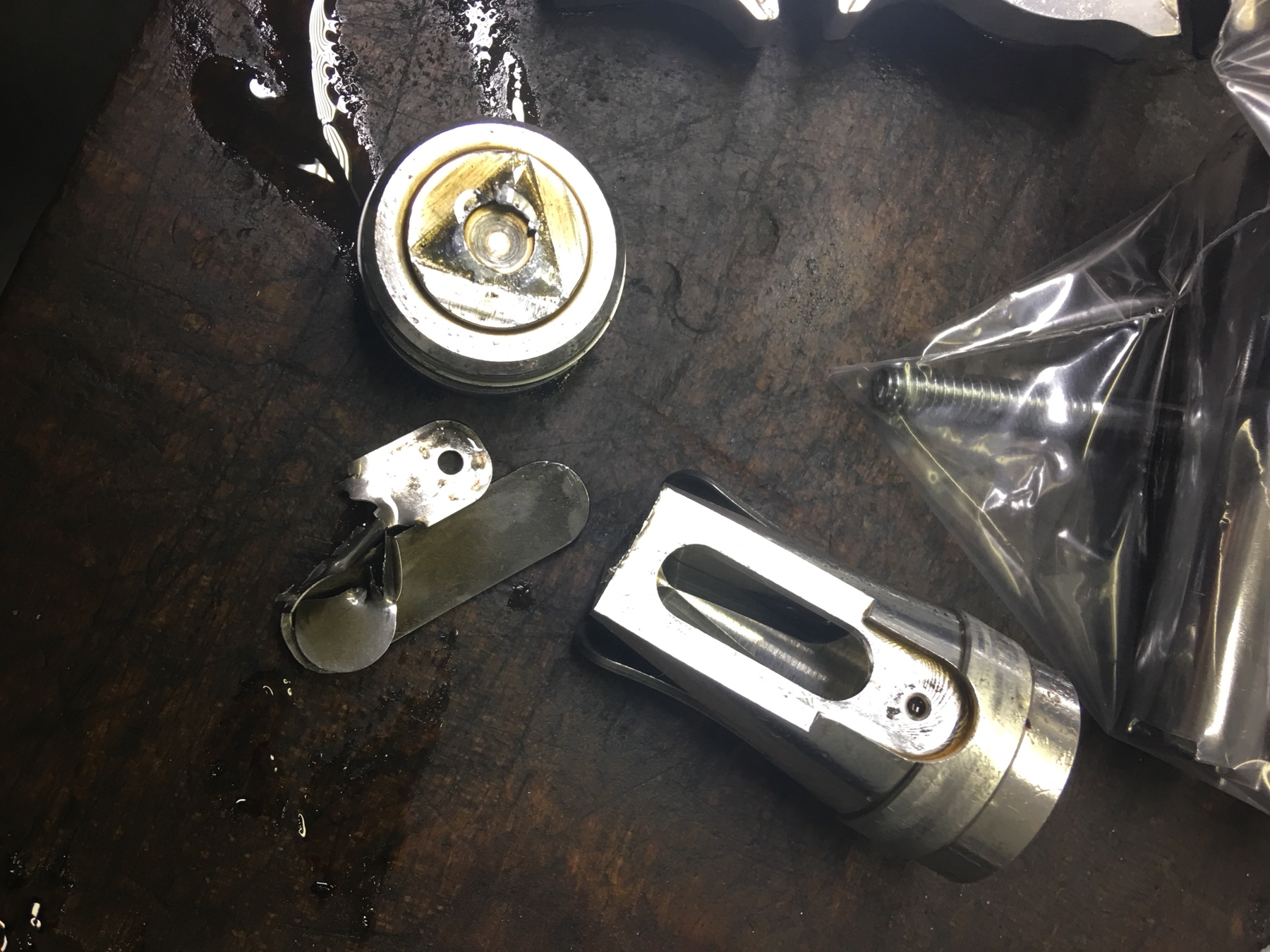

    So, I’m back home and the cause is coming clear.... reed valve for breather was broken ! piece of it (most likely) found its way to oil pump and caused a ”little” problem....
    [​IMG][​IMG]
    What in earth broke the valve is a mystery, or maybe the whole sequence was other way around ...

    Ribs and HMAN like this.
  10. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,921
    Likes Received:
    38,266
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Dat sux:oldbang:

    Unsprung likes this.
  11. Mickeetwo

    Mickeetwo Guru
    Supporting Member

    Joined:
    Nov 28, 2007
    Messages:
    9,550
    Likes Received:
    844
    Trophy Points:
    113
    Location:
    Texarkana, AR
    My Bike(s):
    2006 Big Dog K9 & 2014 Ultra Limited
    First Name:
    Alan
    Wow....sorry to hear that Tapio

  12. Ribs

    Ribs Live Free & Ride Hard

    Joined:
    Nov 24, 2016
    Messages:
    153
    Likes Received:
    206
    Trophy Points:
    43
    Location:
    Ward.AR
    My Bike(s):
    Bigdog Bulldog 2000
    First Name:
    Matt
    Dang.


    Sent from my SM-N950U using Tapatalk

  13. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,672
    Likes Received:
    15,902
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Your oil shaft looks broken too? Or did you cut it?

    How's the rest of your crank case?

    I replaced my oil pump because that damn shaft snapped as the woodruff key got stuck and welded itself into the gear. I replaced it with an ultima it's half the price as the S&S and hell I actually get better oil pressure numbers with the ultima High Flow pump than the stock S&S. It looks a little different but hell you can't see it! And now that your this deep in the oil pump you'll come to the same conclusion it's just a piece of aluminum can't be anything different between ultima and s&s then the price.

    Sent from my 2PS64 using Tapatalk

    #33 Th3InfamousI, Feb 16, 2018
    Last edited: Feb 16, 2018
  14. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,948
    Likes Received:
    4,725
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    The shaft needed to be cut... not sure if I go Ultima or S&S , maybe S&S

  15. Big Daddy 72

    Big Daddy 72 Custom Street Rod Interiors & Design

    Joined:
    May 8, 2016
    Messages:
    626
    Likes Received:
    1,285
    Trophy Points:
    93
    Location:
    Bentonville, Ar.
    My Bike(s):
    2006 Mastiff 2008 k9
    First Name:
    Big Daddy
    Ouch! Hate that for ya buddy! Damn Mechanical Stuff!!!!:mad:
