Camchest, Cam, Lifters, Pushrods - S&S & BDM

Discussion in 'Technical' started by Raywood, Dec 30, 2009.

  1. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,383
    Likes Received:
    696
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Here are the pages from the S&S service manual for the Super Sidewinder Plus (SSW+) motors (05 and above).

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Here is the BDM Service Manual portion of the Cam install;

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #1 Raywood, Dec 30, 2009
    Last edited: Dec 30, 2009
  2. chaingunner

    chaingunner Guest

    That book is the handiest thing, with the BDM manual you can do anything with these bikes.

    Can you believe when I put my cam in there was NO breather gear? John Sachs thought I was nuts! He sent me one and I put it in. I noticed that after looking closer at the S&S book, realized I didn't have on in. The .600 cam alone made a difference, after installing the BG I noticed yet even more difference.

  3. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,383
    Likes Received:
    696
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    Damn!!!! :eek:

  4. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    They did start removing the geared breathers and going with a reed valve type that does not have a gear. It has a spring in the center that loads against the cam nose cone.

    Did you have one of those?

  5. Raywood

    Raywood The Pirate
    Staff Member Supporting Member Calendar Participant

    Joined:
    Apr 5, 2007
    Messages:
    17,383
    Likes Received:
    696
    Trophy Points:
    113
    Location:
    Rainbow, CA
    My Bike(s):
    2014 KMW Regulator
    First Name:
    Ray
    I'm under the assumption that the reed valve is better. What do you guys think?

    :cheers:

  6. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet
  7. chaingunner

    chaingunner Guest

    No it was empty, that's why John thought I was nuts.... :whoop:Crazy eh?

  8. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    Yea that was def. somebody sleeping on the job:down:

    I like the reed for the fact no extra gear to wear, shouldn't cause any case wear because it doesnt rotate and you can't screw up lining it up with the cam. Oh and the extra 10% horsepower you get from not turning that gear!:roll:

  9. chaingunner

    chaingunner Guest

    Yeah right! I know John wouldn't steer one in the wrong direction! :spank:

  10. barhopper

    barhopper Another round please

    Joined:
    Jan 26, 2008
    Messages:
    3,306
    Likes Received:
    22
    Trophy Points:
    38
    Location:
    So Cal
    My Bike(s):
    04 RSD Bulldog
    Since mine is a 04 117", is that a SSW or just the EVO?

  11. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    The 117 is a SSW+ as well as 111 and 124

    107 and 113 are SSW EVO

  12. myanoch

    myanoch Active Member

    Joined:
    Sep 12, 2009
    Messages:
    223
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    Indianapolis, IN.
    My Bike(s):
    2009 coyote
    First Name:
    Mike
    If you look at this picture of mine it has none


    Attached Files:

  13. barhopper

    barhopper Another round please

    Joined:
    Jan 26, 2008
    Messages:
    3,306
    Likes Received:
    22
    Trophy Points:
    38
    Location:
    So Cal
    My Bike(s):
    04 RSD Bulldog
    So you have a SSW EVO and a SSW Plus(+)correct?

  14. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    You have the newer reed breather. Its on the left with small spring sticking out.

  15. V

    V Guru

    Joined:
    Nov 1, 2007
    Messages:
    5,396
    Likes Received:
    50
    Trophy Points:
    48
    Yea the SSW evo 107 , 113 have a 4" bore and vent thru the carb/ air cleaner plate (hollow) bolts in to the head

    The SSW+ 111, 117 and 124 haave a 4 1/8" bore, with a evo style bottom end and twin cam style top end that has seperate breather valves at the top of the heads. The rear cylinder on our bikes with the 117 that are stock have a vent line on top of the head with a black and white check valve and this line ran into the back of the air cleaner plate.

    Corrections welcome please!:cheers:

  16. myanoch

    myanoch Active Member

    Joined:
    Sep 12, 2009
    Messages:
    223
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    Indianapolis, IN.
    My Bike(s):
    2009 coyote
    First Name:
    Mike
    Yes V
    When I first took it apart It shocked me,wheres the gear
    but after doing a little reading it was ok
    The only thing you got to watch is the cam gear marks
    Its easy to put the wrong mark to the crank gear if your not paying attention because you only have one mark to line up and that can be death to the engine if not caught before putting cam cover back on
    Her is a picture os mine lined up
    also a picture of some industrial cylinder magnets holding up lifters so cam can be installed easier


    Attached Files:

  17. barhopper

    barhopper Another round please

    Joined:
    Jan 26, 2008
    Messages:
    3,306
    Likes Received:
    22
    Trophy Points:
    38
    Location:
    So Cal
    My Bike(s):
    04 RSD Bulldog
    Thanks for the info V. :cheers:

  18. Gas Man

    Gas Man Cool isn't cheap
    Supporting Member Calendar Participant

    Joined:
    Apr 8, 2007
    Messages:
    15,043
    Likes Received:
    283
    Trophy Points:
    83
    Location:
    Metro Detoilet

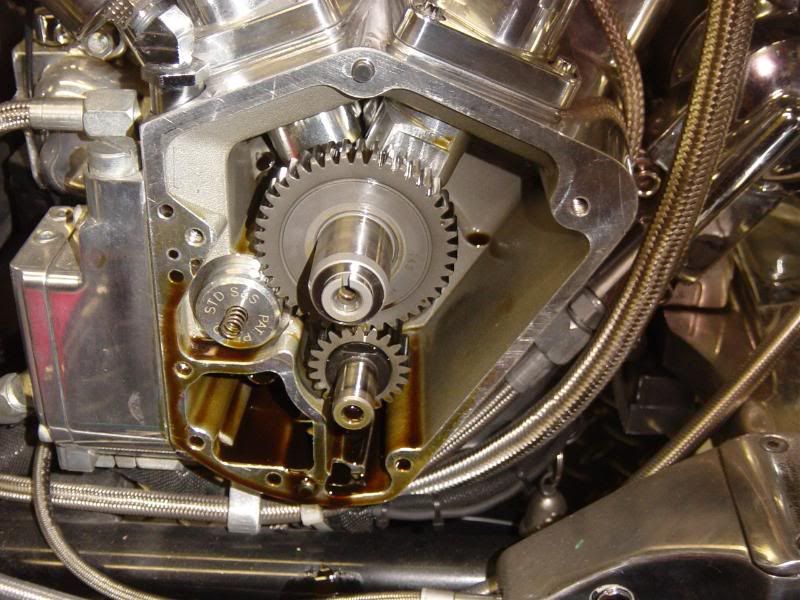

    2006 chop. Came stock with TP rockers. Built early 06

    [​IMG]

  19. stryfox

    stryfox Active Member

    Joined:
    Jul 31, 2009
    Messages:
    988
    Likes Received:
    9
    Trophy Points:
    18
    My Bike(s):
    2008 Big Dog Mutt. custom suzuki intruder
    The pages are not showing up:(
    Any chance you can re-post?:cheers:

  20. okred696

    okred696 Member

    Joined:
    Feb 13, 2014
    Messages:
    96
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    OKLA
    My Bike(s):
    Big Dog 07 K9 Limited Edition #41 HD 2012 SE Roadglide (Black and White) 1987 HD Softail S@S 117 6
    First Name:
    RED
    Crankcase Vacuum

    My std 117 i put in my old Springer actually pulls a crankcase vacuum on the oil tank. It freaked me out on start up, I thought I had the oil lines on wrong. I called them and they said it was normal. Pulling a vacuum equals no leaks.
