Compression release

Discussion in 'General' started by phatchopper300, Oct 28, 2017.

  1. phatchopper300

    phatchopper300 I just wanta ride

    Joined:
    Aug 4, 2009
    Messages:
    2,333
    Likes Received:
    329
    Trophy Points:
    83
    Location:
    Morganton, (Western) NC
    My Bike(s):
    08 k-9 Dakota spedo, RIP Kit gen. one 585 cam 2 1/2 forward contr
    First Name:
    Mike

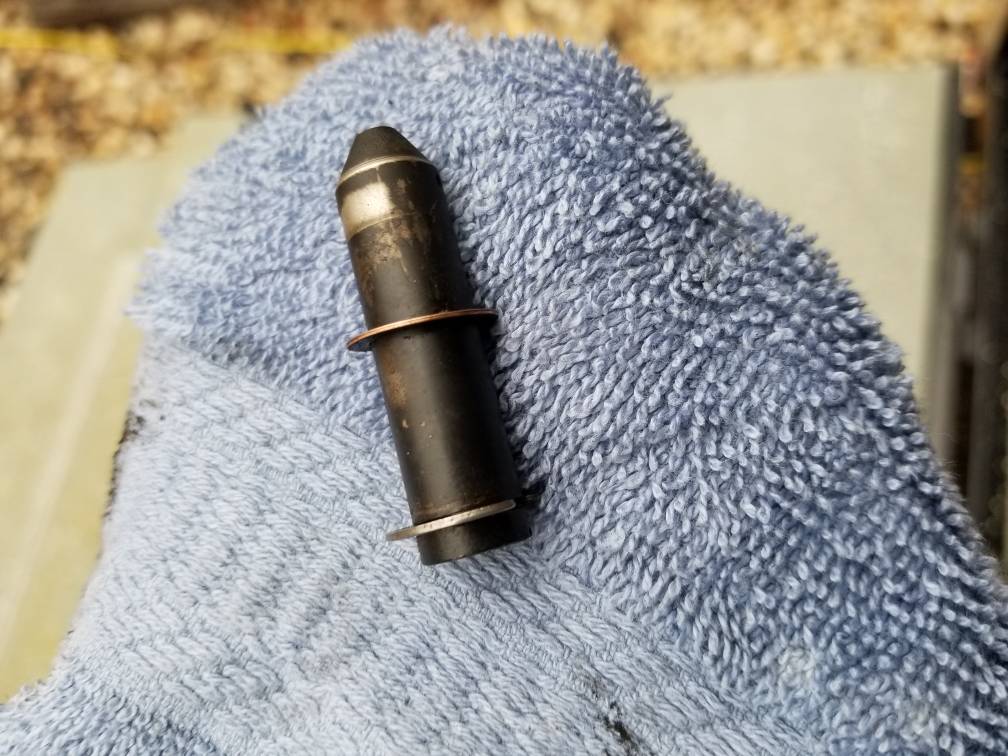

    When on a toy run today and this is what came out of the rear rocker Box center my compression release Bike ran good could tell I was losing a little bit of power Can anybody tell me what's left in the center of the rocker Box obviously I'm gonna go head and replace both[​IMG][​IMG]

    Sent from my SM-N950U using Tapatalk

  2. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,850
    Likes Received:
    36,606
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Yep I just replaced both, that's what they look like and the removal/install tool aside of it

    francoblay1 likes this.
  3. phatchopper300

    phatchopper300 I just wanta ride

    Joined:
    Aug 4, 2009
    Messages:
    2,333
    Likes Received:
    329
    Trophy Points:
    83
    Location:
    Morganton, (Western) NC
    My Bike(s):
    08 k-9 Dakota spedo, RIP Kit gen. one 585 cam 2 1/2 forward contr
    First Name:
    Mike
    Yeah my front one is pulsating along with the compression strokes as I ride I guess I'll be replacing both

    Sent from my SM-N950U using Tapatalk

  4. KaptinAmerika

    KaptinAmerika Well-Known Member

    Joined:
    Mar 16, 2008
    Messages:
    4,729
    Likes Received:
    1,969
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    2006 Big Dog K9
    First Name:
    Curtis
    Yep, seen a few of those.
    The little screw comes out and that assembly is free to slide out.
    The solenoid and a small screw are left in there.

    Compression release
    You can also rent the removal tool, select that option before putting the item in your cart, if you don't have it and don't want to buy it.

    bigkelk9 likes this.
  5. jadoss81

    jadoss81 Member

    Joined:
    Jul 28, 2011
    Messages:
    21
    Likes Received:
    15
    Trophy Points:
    3
    My Bike(s):
    06 K9
    Is it some way to check them and catch it before it does that?


    Sent from my iPhone using Tapatalk

  6. phatchopper300

    phatchopper300 I just wanta ride

    Joined:
    Aug 4, 2009
    Messages:
    2,333
    Likes Received:
    329
    Trophy Points:
    83
    Location:
    Morganton, (Western) NC
    My Bike(s):
    08 k-9 Dakota spedo, RIP Kit gen. one 585 cam 2 1/2 forward contr
    First Name:
    Mike
    Thanks kaptin

    Sent from my SM-N950U using Tapatalk

  7. KaptinAmerika

    KaptinAmerika Well-Known Member

    Joined:
    Mar 16, 2008
    Messages:
    4,729
    Likes Received:
    1,969
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    2006 Big Dog K9
    First Name:
    Curtis
    General maintenance
    Pull them out, I know it ain't easy but it is what it is, and check them.
    I have found a few on my customer's bikes that were letting go.
    Pull them apart, clean them and reassemble with Loc-tite Clean N Prime and Hi Heat Red thread locker.
    Of course there is no really good way to tell if the solenoid is going bad electrically.
    I am, slowly but surely, working on getting a rebuild kit together for them that will be about half the price of buying them new.

  8. jadoss81

    jadoss81 Member

    Joined:
    Jul 28, 2011
    Messages:
    21
    Likes Received:
    15
    Trophy Points:
    3
    My Bike(s):
    06 K9
    That’s what I needed to know. Thanks


    Sent from my iPhone using Tapatalk

    phatchopper300 likes this.
  9. Eumel

    Eumel Member

    Joined:
    Dec 25, 2014
    Messages:
    134
    Likes Received:
    148
    Trophy Points:
    43
    Location:
    Germany Unterwellenborn
    My Bike(s):
    09 Bigdog K9
    First Name:
    Helmut
    I have the same problem with the rear and so I change both
    20T miles IMG_9339.GIF

    Eumel

    #9 Eumel, Oct 29, 2017
    Last edited: Oct 29, 2017
    BWG56 likes this.
  10. francoblay1

    francoblay1 The Spaniard

    Joined:
    Aug 14, 2011
    Messages:
    15,463
    Likes Received:
    12,684
    Trophy Points:
    113
    Location:
    L´Escala, 17130 Spain
    My Bike(s):
    K9 (2006)
    First Name:
    Franco
    Hummmmm interesting.... I have to work my rear one with my finger every time I start the bike or a big CLUNK goes off in the starter pinion!!!! Already broke it once (the starter shaft that is).

    bigkelk9, Olde Man and cdogg556 like this.
  11. cdogg556

    cdogg556 Guru

    Joined:
    May 21, 2011
    Messages:
    7,066
    Likes Received:
    15,310
    Trophy Points:
    113
    Location:
    Folsom, Ca.
    My Bike(s):
    2009 Big Dog Mastiff, Chrome Package, DOC's ESC, 585 cam, VH Big Radius Exhaust, 2.5" fwd Controls
    First Name:
    John
    Well this seems to be a "Very" common issue! I am definitely changing mine when I tear it down to do the top end this winter! Ker say's his is "like new" now and that was causing all the hard starting issues the whole time!

    BWG56 and francoblay1 like this.
  12. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,850
    Likes Received:
    36,606
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    If your going to pull them out to check them your best to just replace them, I would not try to rebuild them cause you never know when they are just going to wear out electrically. The first time you take them out and try to get them back in there you will see what I'm talking about.

    cdogg556 and dentdude36 like this.
  13. cdogg556

    cdogg556 Guru

    Joined:
    May 21, 2011
    Messages:
    7,066
    Likes Received:
    15,310
    Trophy Points:
    113
    Location:
    Folsom, Ca.
    My Bike(s):
    2009 Big Dog Mastiff, Chrome Package, DOC's ESC, 585 cam, VH Big Radius Exhaust, 2.5" fwd Controls
    First Name:
    John
    10-4, Roger that BWG! :D

    francoblay1 and BWG56 like this.
  14. cdogg556

    cdogg556 Guru

    Joined:
    May 21, 2011
    Messages:
    7,066
    Likes Received:
    15,310
    Trophy Points:
    113
    Location:
    Folsom, Ca.
    My Bike(s):
    2009 Big Dog Mastiff, Chrome Package, DOC's ESC, 585 cam, VH Big Radius Exhaust, 2.5" fwd Controls
    First Name:
    John
    :disappointed:

  15. njbiker20088

    njbiker20088 Active Member

    Joined:
    Dec 12, 2016
    Messages:
    350
    Likes Received:
    489
    Trophy Points:
    93
    Location:
    monroe nj 08831
    My Bike(s):
    lsc iron horse, gold wing, 1500 intruder
    First Name:
    al
    Can i just take them out and buy new s&s easy start cams.

    #15 njbiker20088, Oct 30, 2017
    Last edited: Oct 30, 2017
  16. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,850
    Likes Received:
    36,606
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    No easy start cams for a single cam in the 117

    francoblay1 and cdogg556 like this.
  17. cdogg556

    cdogg556 Guru

    Joined:
    May 21, 2011
    Messages:
    7,066
    Likes Received:
    15,310
    Trophy Points:
    113
    Location:
    Folsom, Ca.
    My Bike(s):
    2009 Big Dog Mastiff, Chrome Package, DOC's ESC, 585 cam, VH Big Radius Exhaust, 2.5" fwd Controls
    First Name:
    John
    :old2:

    BWG56 likes this.
  18. Trainguy

    Trainguy Chromeoholic
    Supporting Member

    Joined:
    May 16, 2009
    Messages:
    5,024
    Likes Received:
    1,571
    Trophy Points:
    113
    Location:
    Area 51
    My Bike(s):
    Big Dog Motorcycle Enthusiast
    First Name:
    DJ
    How many miles are you guys seeing these failures at?

  19. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,850
    Likes Received:
    36,606
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    ,

    #19 BWG56, Oct 30, 2017
    Last edited: Dec 9, 2017
    francoblay1 likes this.
  20. TapioK

    TapioK Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    2,977
    Likes Received:
    4,657
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    Around 20k my rear one did blow the innards out while riding, almost scared the shit out of me.

    chubs and francoblay1 like this.
