Ignition/Speedometer

Discussion in 'Vintage Big Dogs' started by Rick Utley, Oct 11, 2017.

  1. Rick Utley

    Rick Utley Member

    Joined:
    Jun 28, 2016
    Messages:
    56
    Likes Received:
    56
    Trophy Points:
    18
    Location:
    Houston, Tx.
    My Bike(s):
    2004 Big Dog Chopper
    First Name:
    Rick

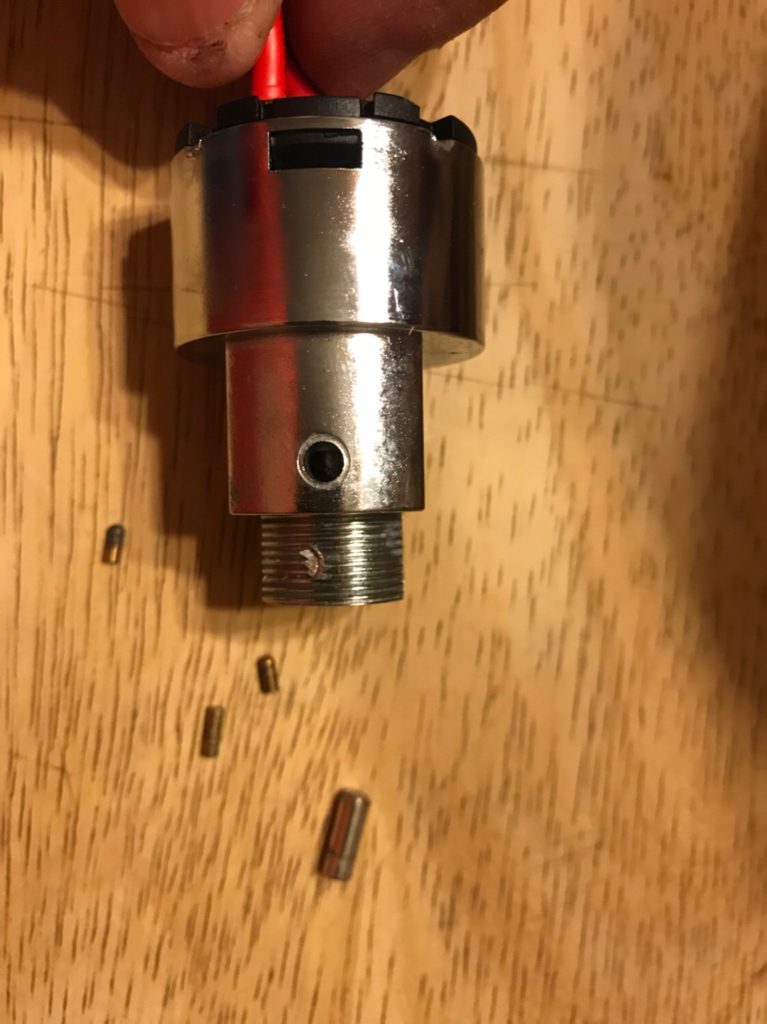

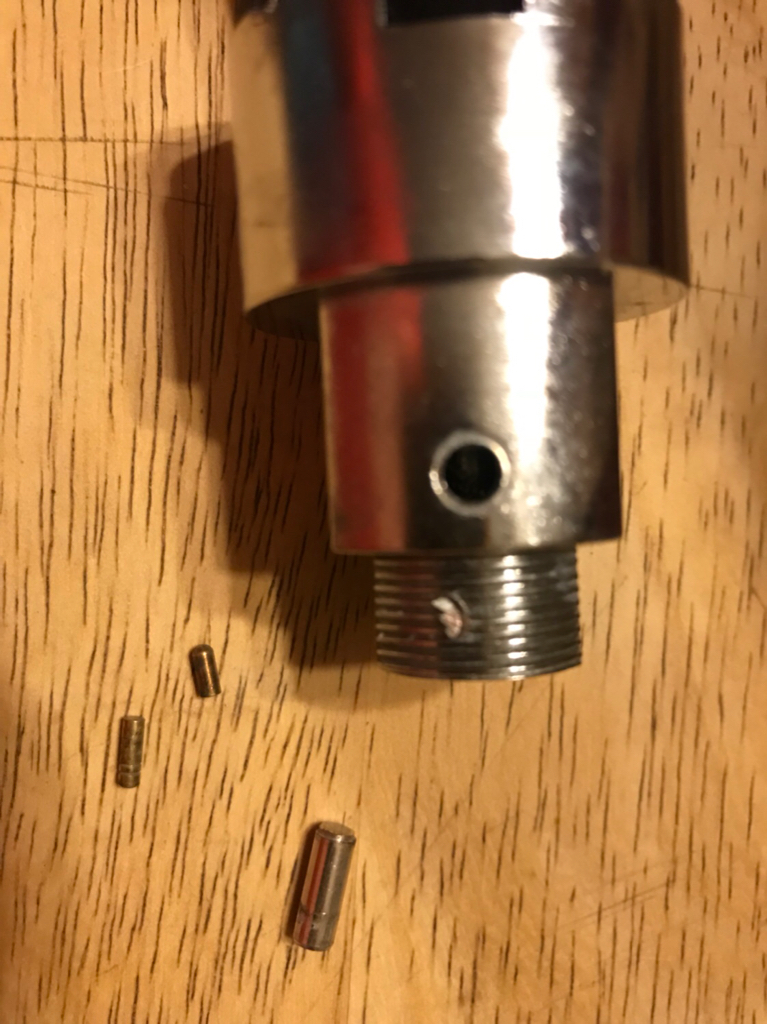

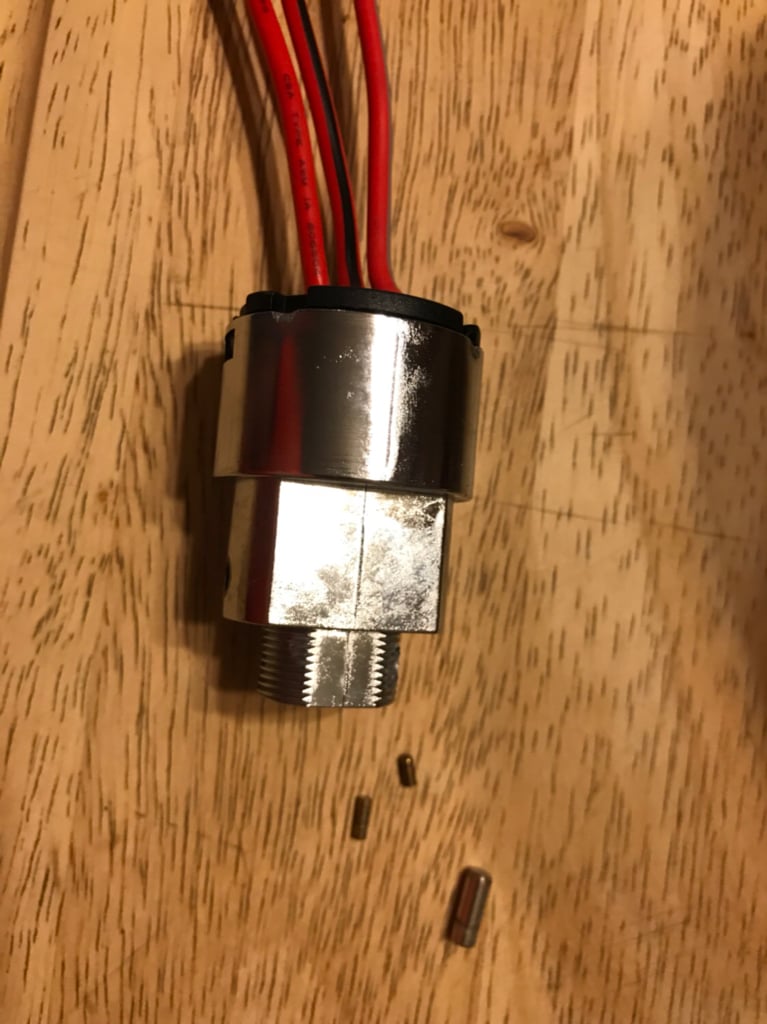

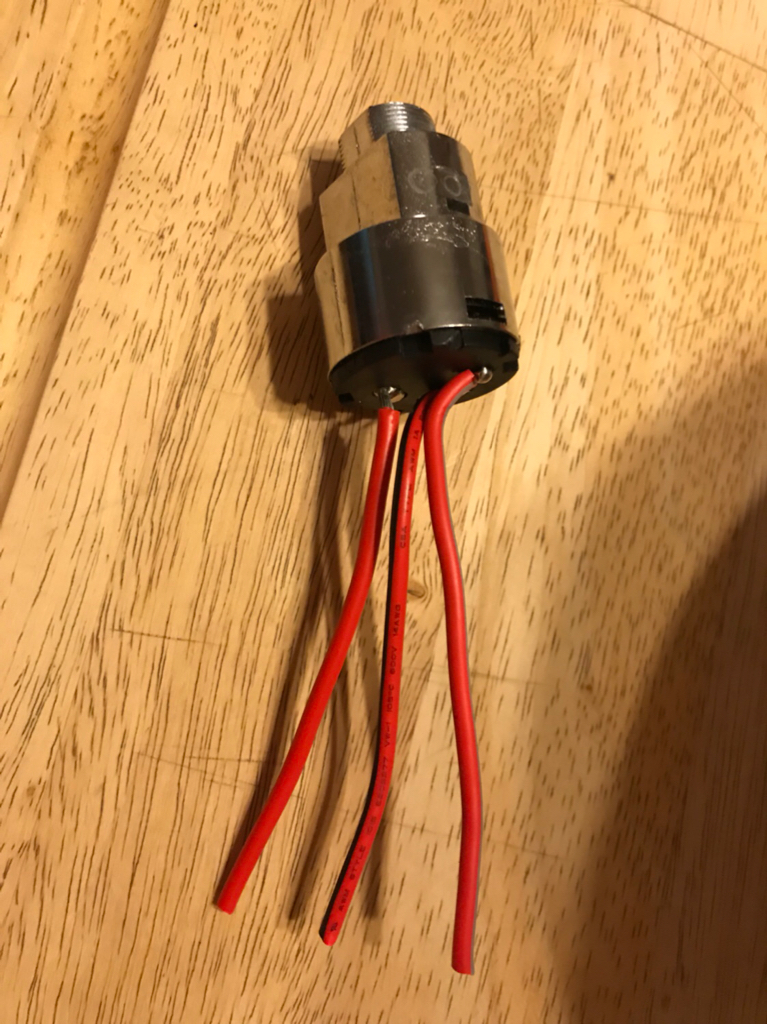

    I have a 2004 Big Dog Chopper I rode last weekend no problems cut it off went out tonight to piddle took battery loose finished went to put cables back on and key ignition would not turn so I pulled ignition out to find the bigger pin halfway out and speedometer Light stays on! Any ideas?[​IMG][​IMG][​IMG][​IMG]


    Sent from my iPhone using Tapatalk

  2. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    2,657
    Likes Received:
    4,711
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    There are a few different options to use.. a lot of these guys use them cheap tractor supply switches because they r just that, cheap and if it goes out again ur not out too much. I found a drag specialties switch that I prefer myself.. happy hunting

  3. TapioK

    TapioK Well-Known Member
    Supporting Member

    Joined:
    Nov 23, 2011
    Messages:
    2,794
    Likes Received:
    4,479
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    Pay attention! WP ehc, three wires on ignition switch! That switch is from sportster most likely
    Wait a sec, does your have 3 wires too? Those tractor switches have 2

  4. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    2,657
    Likes Received:
    4,711
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    U only use two of the prongs, all its for is if u have and accessory position on ur bike.. which ours dont.

  5. pknowles

    pknowles Guru
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    10,610
    Likes Received:
    14,283
    Trophy Points:
    113
    Location:
    suffolk,va.
    My Bike(s):
    07 K9, 2012 CVO Streetglide, 10 bulldog
    First Name:
    paul
    wire plus is : off/run/lights if memory serves me correctly

    TapioK and bigkelk9 like this.
