Ignition switch issues

Discussion in 'Vintage Big Dogs' started by HellOnWheels, May 5, 2017.

  1. HellOnWheels

    HellOnWheels Member

    Joined:
    Apr 23, 2013
    Messages:
    38
    Likes Received:
    37
    Trophy Points:
    18
    My Bike(s):
    1999 Vintage Sport
    First Name:
    Father
    1999 Vintage Sport with the combination coil/switch mount that bolts onto the head studs. I've gone through an ignition switch (the old-school key switch barrel) on average about every two thousand miles. I've used multiple different brands, including a heavy-duty marine switch from NAPA. It's not the current that appears to be eating them, but rather the vibration. The innards of the switch literally rattle apart. End of March, I was 200 miles from home when the bike wouldn't turn off while stopping for fuel...replaced it when I got back home, and had to replace it again this afternoon.

    Any suggestions on a decent switch that will A) fit in the housing, and B) not just fall apart after a couple thousand miles?

    Short of getting a bulletproof switch that will fit in the factory mount, my next option would be to mount a toggle switch on the handlebar or frame, but can't seem to find a decent mount that won't look ghetto-rigged.

    Help would be much appreciated.

    chubs likes this.
  2. FrankBDPS

    FrankBDPS Well-Known Member

    Joined:
    Sep 7, 2013
    Messages:
    3,300
    Likes Received:
    3,098
    Trophy Points:
    113
    Location:
    North Lawrence,Ohio
    My Bike(s):
    2ooo ProSport 1997 Honda Night Hawk
    First Name:
    Frank
    There is supposed to be a switch sold at Tractor Supply stores that would fit a Ford 9N tractor that would fit and hold up. Personally I would call bigdodpartsking or wild steed works and see what they have.

    One question I have is you say this switch is necessary to shut the bike off. Don't you have a run/stop toggle switch on you're right side handle bar? Just courious.

    Good luck!

    chubs likes this.
  3. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    22,208
    Likes Received:
    40,261
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    chubs likes this.
  4. HellOnWheels

    HellOnWheels Member

    Joined:
    Apr 23, 2013
    Messages:
    38
    Likes Received:
    37
    Trophy Points:
    18
    My Bike(s):
    1999 Vintage Sport
    First Name:
    Father
    You've got a very good point about the run/stop switch. It will kill the engine, but won't shut off the electrical to anything else, including headlights...which will drain the battery and make for a difficult start.

    Regardless, after I was almost killed by a malfunctioning run/stop switch on one of my earlier bikes that had prematurely worn out and killed the engine as I pulled into traffic, I made it a habit to never use that switch. Hadn't used a handlebar switch in 15 years and kinda forgot it was there!

    chubs likes this.
  5. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,519
    Likes Received:
    10,321
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    03 BD Chopper - 04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    I'm running a toggle switch on mine. The key switch is just there for looks.

    Matheny 514, chubs and BigDogRick like this.
  6. PROFLYER

    PROFLYER SWOLE

    Joined:
    Oct 8, 2007
    Messages:
    1,905
    Likes Received:
    926
    Trophy Points:
    113
    Location:
    Denver, CO
    My Bike(s):
    06 K9, 06 Mastiff (wife's)
    First Name:
    Sutton
    How'd you set that up? Hidden?

    chubs likes this.
  7. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,519
    Likes Received:
    10,321
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    03 BD Chopper - 04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon

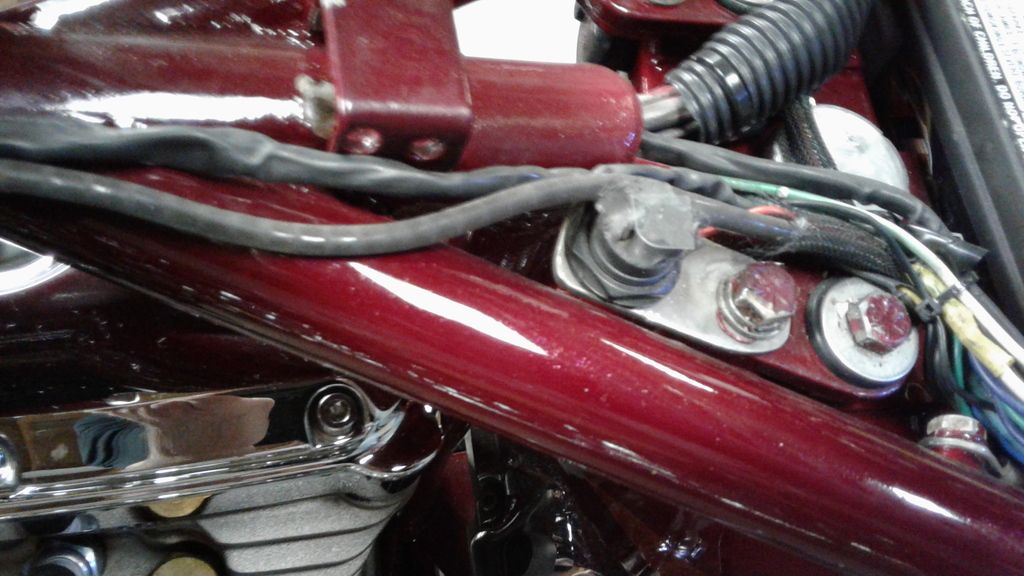

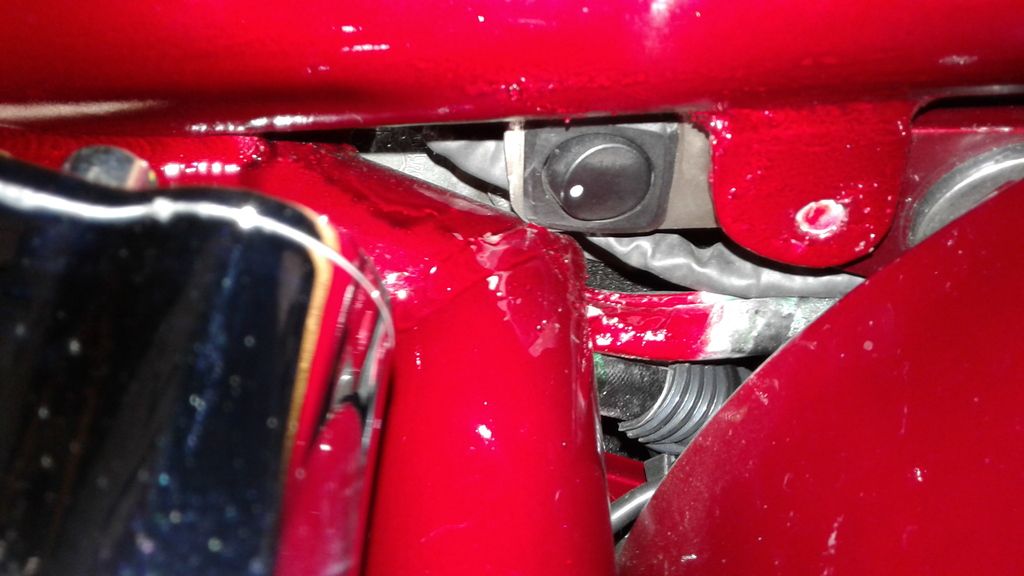

    You can put it anywhere. If it has a key switch, no one will think about it having a toggle switch to turn it on. If you turn my key switch on, it blows the horn. Which is one of those Bad Boy air horns.
    [​IMG]
    [​IMG]

    Matheny 514 and chubs like this.
  8. PROFLYER

    PROFLYER SWOLE

    Joined:
    Oct 8, 2007
    Messages:
    1,905
    Likes Received:
    926
    Trophy Points:
    113
    Location:
    Denver, CO
    My Bike(s):
    06 K9, 06 Mastiff (wife's)
    First Name:
    Sutton
    Nice. What do you wire it to? Would you want to wire it to the wires that go to the key switch at the switch, or would you want to just splice in near the EHC?

    chubs likes this.
  9. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,519
    Likes Received:
    10,321
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    03 BD Chopper - 04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    Use the switch wires, so you don't have to mess with your wiring harness. Mine is hard wired, and all my switches are ground switches, meaning the just ground a relay.

    chubs and PROFLYER like this.
  10. PROFLYER

    PROFLYER SWOLE

    Joined:
    Oct 8, 2007
    Messages:
    1,905
    Likes Received:
    926
    Trophy Points:
    113
    Location:
    Denver, CO
    My Bike(s):
    06 K9, 06 Mastiff (wife's)
    First Name:
    Sutton
    so just get a 2 terminal toggle of some kind and connect each terminal to the two wires coming off the key switch?

    chubs likes this.
  11. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,324
    Likes Received:
    6,488
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    Sounds pretty simple doesn't it.. And a good idea. I also like the horn button to the key switch thing.

    chubs and PROFLYER like this.
  12. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,934
    Likes Received:
    16,295
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    It is that simple only two wires ...

    Shannon leaves the key in to see if he can entice someone he has a itchy trigger finger..lol

    Sent from my 2PS64 using Tapatalk

    Matheny 514, chubs and PROFLYER like this.
  13. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,324
    Likes Received:
    6,488
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    unless you have a 3 position key like on the Bulldog.

    chubs likes this.
  14. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,934
    Likes Received:
    16,295
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Yea then you just gotta splice your 1 and 2 position together. You'd lose your AUX position.

    Sent from my 2PS64 using Tapatalk

    chubs likes this.
  15. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,324
    Likes Received:
    6,488
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    And that would kill the battery pretty quick with the headlight on. I'll bet someone makes a 3 position switch.

    chubs and PROFLYER like this.
  16. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,934
    Likes Received:
    16,295
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Well how often do you leave it in that position? Probably never?

    Sent from my 2PS64 using Tapatalk

    chubs likes this.
  17. PROFLYER

    PROFLYER SWOLE

    Joined:
    Oct 8, 2007
    Messages:
    1,905
    Likes Received:
    926
    Trophy Points:
    113
    Location:
    Denver, CO
    My Bike(s):
    06 K9, 06 Mastiff (wife's)
    First Name:
    Sutton
    Yeah lots of 3 position and 2 position switches. Biggest issue is finding one you like and then where to mount it.

    chubs likes this.
  18. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,324
    Likes Received:
    6,488
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    only when listening to the tunes while cleaning it.

    chubs likes this.
  19. HellOnWheels

    HellOnWheels Member

    Joined:
    Apr 23, 2013
    Messages:
    38
    Likes Received:
    37
    Trophy Points:
    18
    My Bike(s):
    1999 Vintage Sport
    First Name:
    Father
    My Vintage Sport has the old-school hardwired switch that actually runs the current through it along the circuit path going from battery to controller, as opposed to the newer style. I've been told that I'll need a switch rated at at least 20 amps. Any suggestions on where to find a good switch and mount?

    chubs likes this.
  20. Butch Cassidy

    Butch Cassidy Active Member

    Joined:
    Nov 20, 2016
    Messages:
    348
    Likes Received:
    448
    Trophy Points:
    63
    Location:
    Fate Texas
    My Bike(s):
    2000 Bulldog
    First Name:
    BUTCH
    chubs and PROFLYER like this.
