Oil leak

Discussion in 'Help Wanted' started by bigkelk9, Mar 13, 2018.

  1. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    2,933
    Likes Received:
    5,160
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    So I have had this oil seaping from somewhere on the front right jug/head area... it's not enough to leave any kind of puddle. I cleaned the bike last night, didn't polish to check this out again. Rode to work this morning and have this again.. n e ideas would greatly help.


    Sent from my SAMSUNG-SM-G920A using Tapatalk

  2. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    2,933
    Likes Received:
    5,160
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel

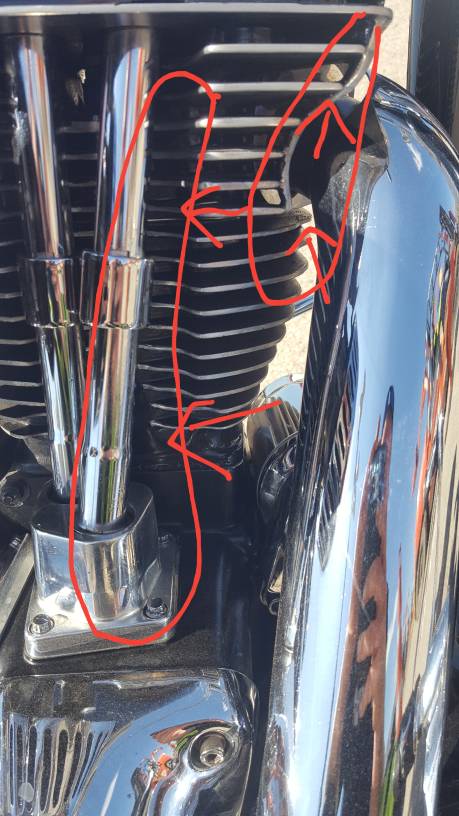

    Here's a pic[​IMG]

    Sent from my SAMSUNG-SM-G920A using Tapatalk

  3. HMAN

    HMAN Well-Known Member

    Joined:
    Mar 21, 2011
    Messages:
    3,622
    Likes Received:
    2,723
    Trophy Points:
    113
    Location:
    fk it
    Leaky rockerbox gasket or pushrod cover?

    bdm7250 likes this.
  4. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    2,933
    Likes Received:
    5,160
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    All the gaskets are new.. I'm pulling my rocker covers off this weekend to install set screws and whatnot and I'll take a look at them gaskets.. but I'm definitely thinking the push od cover gaskets might have something to do with it as well.. Idk because it's on the front head running down. I'm hoping someone has had a similar issue will chime in..

  5. HMAN

    HMAN Well-Known Member

    Joined:
    Mar 21, 2011
    Messages:
    3,622
    Likes Received:
    2,723
    Trophy Points:
    113
    Location:
    fk it
    I've had leaks in both places. Hard to tell where it comes from when its pushed by wind...you'll find it.

    bigkelk9 likes this.
  6. SKOGDOG

    SKOGDOG One of the old ones.
    Supporting Member

    Joined:
    Sep 21, 2009
    Messages:
    1,427
    Likes Received:
    2,181
    Trophy Points:
    113
    Location:
    Pittsburg, Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    I had a head gasket fail and leak dead center in the front cylinder. There is a return oil gallery running down there and mine would seep oil...the compression was not compromised and the bike ran fine. When cold, no big deal, but when running hard on a hot day,it seeped out and ran around and made the fins a mess. Both front and rear cylinder.
    I'l pretty sure it was from not warming it up long enough. I always rode very gently the first 15 minutes or so, but now I just let it warm up for some minutes before I take off.

    bigkelk9, bdm7250 and HMAN like this.
  7. bdm7250

    bdm7250 Guru
    Supporting Member

    Joined:
    Jun 3, 2016
    Messages:
    6,418
    Likes Received:
    16,332
    Trophy Points:
    113
    Location:
    Hamilton Ontario Canada
    My Bike(s):
    2008 BD Mastiff 2008 AIH Slammer
    First Name:
    Doug
    Make sure you follow the torque pattern.

  8. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,916
    Likes Received:
    36,807
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    And torque specs:old2:

    bdm7250 and bigkelk9 like this.
  9. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    2,933
    Likes Received:
    5,160
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    Ya know I only used the torque specs for the head gasket because using the torque specs on my rocker housing stripped my box out.. they ask forntoo much.. asked Curtis and he agreed as well as Rick.. so idk..

  10. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,916
    Likes Received:
    36,807
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Well maybe that’s where the leak is, I just changed my rocker box gaskets n cover when I did my CR’s, and I followed the torque specs to the letter. No leaks n nothing stripped out. So if its leaking something is obviously not tightened enough. Prolly wanna call one of them and ask them if they know where the leak is.

    #10 BWG56, Mar 13, 2018
    Last edited: Mar 18, 2018
    francoblay1 and bdm7250 like this.
  11. bdm7250

    bdm7250 Guru
    Supporting Member

    Joined:
    Jun 3, 2016
    Messages:
    6,418
    Likes Received:
    16,332
    Trophy Points:
    113
    Location:
    Hamilton Ontario Canada
    My Bike(s):
    2008 BD Mastiff 2008 AIH Slammer
    First Name:
    Doug
    I made sure to include them on the screenshot..:yesnod:

  12. bdm7250

    bdm7250 Guru
    Supporting Member

    Joined:
    Jun 3, 2016
    Messages:
    6,418
    Likes Received:
    16,332
    Trophy Points:
    113
    Location:
    Hamilton Ontario Canada
    My Bike(s):
    2008 BD Mastiff 2008 AIH Slammer
    First Name:
    Doug
    I think we've been down this road before..:willynilly:

    BWG56 likes this.
  13. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,916
    Likes Received:
    36,807
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Yepper, I know we were :yesnod: :old2:

    bdm7250 likes this.
  14. SB03chopper

    SB03chopper Active Member
    Supporting Member

    Joined:
    Jul 14, 2017
    Messages:
    319
    Likes Received:
    361
    Trophy Points:
    63
    Location:
    St. Louis, Mo.
    My Bike(s):
    2003 Big Dog chopper, 2004 Honda 1800 R vtx
    First Name:
    Steve
    You know bolts are stretched when they are used, an replacing with new ones is usually called for as torque will not be right.

  15. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,916
    Likes Received:
    36,807
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Steel screws in steel threads, yes. Steel screws in aluminum threads, no way.
    Rocker boxes and heads are aluminum.

    #15 BWG56, Mar 14, 2018
    Last edited: Mar 14, 2018
    bdm7250 and bigkelk9 like this.
  16. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,916
    Likes Received:
    36,807
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Holy Blip Blip :whore::oldhardlaugh:

    dentdude36 likes this.
  17. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,295
    Likes Received:
    6,049
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    Well Kel, did you get the problem resolved or are you still chasing it down?

  18. francoblay1

    francoblay1 The Spaniard

    Joined:
    Aug 14, 2011
    Messages:
    15,014
    Likes Received:
    12,207
    Trophy Points:
    113
    Location:
    L´Escala, 17130 Spain
    My Bike(s):
    K9 (2006)
    First Name:
    Franco
    Blip?

    BWG56 likes this.
  19. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,295
    Likes Received:
    6,049
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    BLIP[​IMG]

    francoblay1 likes this.
  20. HMAN

    HMAN Well-Known Member

    Joined:
    Mar 21, 2011
    Messages:
    3,622
    Likes Received:
    2,723
    Trophy Points:
    113
    Location:
    fk it
    Its the new "bump".
