Paint Saver Ring Removal

Discussion in 'Technical' started by Radams1945, Aug 10, 2018.

  1. Radams1945

    Radams1945 Member

    Joined:
    Mar 15, 2013
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Harrisburg, Pa
    My Bike(s):
    2003 Big Dog Mastiff
    First Name:
    Brian
    Hi all,

    So, the old stuck gas cap issue! I was able to remove my gas cap finally, bought 2 new aluminum thread pop up style caps, to avoid that issue again. But now can't get the paint saver rings off! I purchased the removal tool, after waiting 2 weeks to get that, go to use, within moments broke off one of the tabs! Also tried the hammer and screw driver but is digging into the ring! UGH! Does anyone have any suggestions?

    Please Help!

  2. Mr. Wright

    Mr. Wright Guru
    Supporting Member

    Joined:
    Aug 27, 2012
    Messages:
    7,710
    Likes Received:
    10,860
    Trophy Points:
    113
    Location:
    Salem, Missouri
    My Bike(s):
    04 BD Chopper- 2002 1100 v-star
    First Name:
    Shannon
    Finish grinding off the broke tab. Drill and tap the removal tool for a couple 10-32 set screws.
    Or you can PM Skroggdog, and tell him to finish using the one I made, and have him send it to you.

    PacoPetty, TapioK and chubs like this.
  3. SKOGDOG

    SKOGDOG One of the old ones.
    Supporting Member

    Joined:
    Sep 21, 2009
    Messages:
    1,504
    Likes Received:
    2,409
    Trophy Points:
    113
    Location:
    Pittsburg, Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    Yes-I am through with the tool and can send it to Brian if he needs it, or to Shannon. Thanks to Shannon for his generosity.
    Just pm me an address and I'll have it out ASAP.

    PacoPetty and TapioK like this.
  4. Ernie12

    Ernie12 Member

    Joined:
    May 27, 2018
    Messages:
    117
    Likes Received:
    67
    Trophy Points:
    28
    Location:
    Ohio
    My Bike(s):
    02 BD Pro Sport
    First Name:
    Ernie
    spray some silicone underneath the paint saver and let it soak a while. It should soften up the rubber gasket and make it easier to get off. I did that to mine and it came right off.

    PacoPetty likes this.
  5. pauly

    pauly Active Member

    Joined:
    Sep 1, 2013
    Messages:
    574
    Likes Received:
    426
    Trophy Points:
    63
    Location:
    Weeroona Island South Australia
    My Bike(s):
    2008 Big Dog Mastiff
    First Name:
    Paul
    I have filled my tank with water and used a heat gun on the paint saver to heat it up
    till it was nearly hot to touch and unscrewed it with the tool.
    I did not care about the paint as I was going to repaint it anyway. No paint damage thou.

    Paul.

    pknowles likes this.
  6. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,474
    Likes Received:
    6,378
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    It would be interesting to know the name of the silicone spray that released the seal without damaging the paint. I was thinking the heat gun would work with the tank purged.

    PacoPetty likes this.
  7. Ernie12

    Ernie12 Member

    Joined:
    May 27, 2018
    Messages:
    117
    Likes Received:
    67
    Trophy Points:
    28
    Location:
    Ohio
    My Bike(s):
    02 BD Pro Sport
    First Name:
    Ernie
    I know I have a good coat of polish on the tank but I never even thought about the silicone damaging the paint. I think it was made by Liquid Wrench , I guess you could try WD 40 also. I did not spray it like crazy , I had a rag around it the whole time and just used little squirts so there was no over spray.

    Also I just remembered that there was some kind of thread sealant on the threads. Maybe that is why he is having such a hard time removing them.

    #7 Ernie12, Aug 10, 2018
    Last edited: Aug 10, 2018
    PacoPetty likes this.
  8. pknowles

    pknowles Getting better by the day...---... GURU
    Supporting Member

    Joined:
    Jul 10, 2010
    Messages:
    7,474
    Likes Received:
    6,378
    Trophy Points:
    113
    Location:
    virginia
    My Bike(s):
    , 2012 CVO Streetglide, 07k9 MAKIN IT MY OWN
    First Name:
    paul
    Well Ernie, it's good to know that it won't mess up the paint. And, I think you are right about the sealant. Seems like some have done damager to the tank trying to get the threaded portion out.

  9. HMAN

    HMAN Well-Known Member

    Joined:
    Mar 21, 2011
    Messages:
    3,795
    Likes Received:
    3,044
    Trophy Points:
    113
    Location:
    fk it

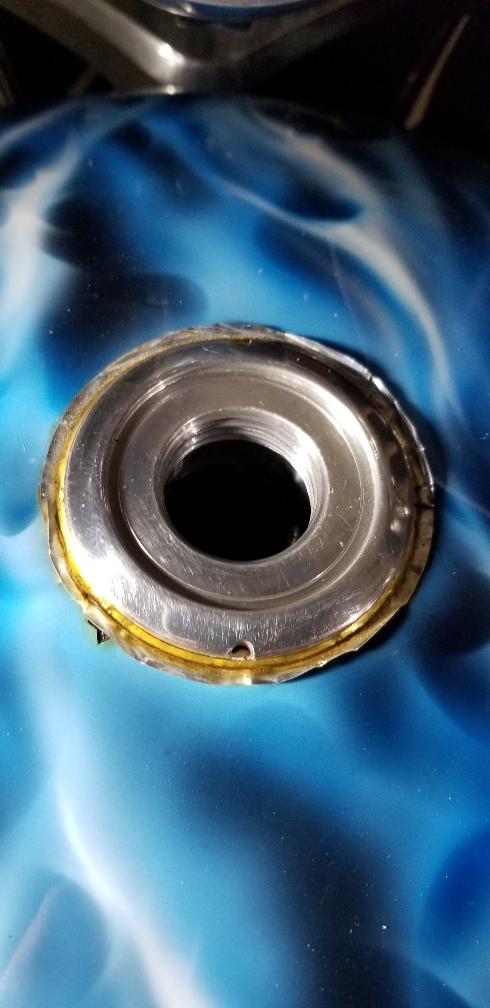

    Made this one outta some scrap. It works. Sealer on threads is JB weld I believe...? 20180607_195301.jpg

    PacoPetty and pknowles like this.
  10. Radams1945

    Radams1945 Member

    Joined:
    Mar 15, 2013
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Harrisburg, Pa
    My Bike(s):
    2003 Big Dog Mastiff
    First Name:
    Brian
    Thanks guys for all the tips. I will try the combo of WD-40 and a heat gun. The seller I purchased the removal tool on Ebay sent me a replacement, which was cool. Will let you know my results.
