Progressive shock bolt failure - Video 2 of 2

Discussion in 'How-To' started by rebroker7, Sep 13, 2017.

  1. rebroker7

    rebroker7 Member

    Joined:
    Sep 29, 2014
    Messages:
    85
    Likes Received:
    105
    Trophy Points:
    33
    Location:
    San Diego, CA
    My Bike(s):
    2009 K9, 2006 Ironhorse Texas Chopper
    First Name:
    Bob
    This is the second of two videos about my progressive shock bolt failure. In this video we speculate what the cause of this was, show how it was fixed and most importantly of all show a couple second maintenance check that could possibly save this from happening to your ride.
    Progressive shock bolt failure

    Rottweiler and Big D Florida like this.
  2. Bdm4ever

    Bdm4ever Well-Known Member
    Troop Supporter Supporting Member

    Joined:
    Sep 2, 2009
    Messages:
    1,793
    Likes Received:
    4,928
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Something
    First Name:
    K9
    Good video and advise, thanks Bob. :oldthumbsup:

    jor43387, Big D Florida and chubs like this.
  3. chubs

    chubs Well-Known Member

    Joined:
    Sep 30, 2015
    Messages:
    4,760
    Likes Received:
    9,846
    Trophy Points:
    113
    Location:
    laf. indiana
    My Bike(s):
    2002 pitbull Prostreet -- 2003 XL 1200 C
    First Name:
    runky
    Thank Bob, AND Curtis !!

  4. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,060
    Likes Received:
    15,050
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    Glad you are okay, first and foremost and I appreciate the post and videos.


    -----

    One thing I forgot to mention in the first post about the 442 shocks.....

    Progressive 442's are not found on BigDogs 05 and up. I believe some folks have had luck getting them to fit on the 04 and orders LSD.

    I don't believe we have a poly bushing on the OEM shocks it's been a year since I had it off, I believe it's sleeved for the bolt rather than having a wear part there which I'm surprised progressive goes that route for shocks mounted horizontal. Can anyone confirm? Manual seems to agree


    Sent from my 2PS64 using Tapatalk

    #4 Th3InfamousI, Sep 13, 2017
    Last edited: Sep 13, 2017
  5. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    19,925
    Likes Received:
    38,776
    Trophy Points:
    113
    Location:
    Chocolatetown, PA.
    My Bike(s):
    07' Mastiff, DOC's ESC, 585DualRunner, Spyder F3T
    First Name:
    Ker
    My 07' does have the nylon bushings for the shoulder bolt, they are not very thick though.

  6. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,060
    Likes Received:
    15,050
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    I Dont recall them being replaceable however?

    Nylon is different this is a poly bushing and by the looks of it a rather soft poly bushing as well.

    I guess I'm trying to figure out if it's even possible with the Worx OEM shocks.

    Sent from my 2PS64 using Tapatalk

  7. KaptinAmerika

    KaptinAmerika Well-Known Member

    Joined:
    Mar 16, 2008
    Messages:
    4,584
    Likes Received:
    1,427
    Trophy Points:
    113
    Location:
    USA
    No, you guys are correct
    The progressives only work on 04 and older bikes
    05 and newer shocks are hard mounted without any provision to add a bushing.
    With as many breakages as I've seen though I don't understand why the engineers did not just go with a straight 5/8 bolt instead of a 5/8 shoulder bolt with 1/2" threads. All they had to do was up the size of the mount gussets etc a little too allow for the larger mount tube.

  8. Th3InfamousI

    Supporting Member

    Joined:
    Sep 26, 2009
    Messages:
    10,060
    Likes Received:
    15,050
    Trophy Points:
    113
    Location:
    Texas
    My Bike(s):
    04 Ridgeback & 07 K9
    First Name:
    Eric
    I remember a while back you were thinking of machining some grade 8 ones or did for yourself. Did that end up hitting the back burner?



    Sent from my 2PS64 using Tapatalk

  9. KaptinAmerika

    KaptinAmerika Well-Known Member

    Joined:
    Mar 16, 2008
    Messages:
    4,584
    Likes Received:
    1,427
    Trophy Points:
    113
    Location:
    USA

  10. jor43387

    jor43387 Member

    Joined:
    Jul 27, 2017
    Messages:
    19
    Likes Received:
    2
    Trophy Points:
    3
    Location:
    Wisconsin

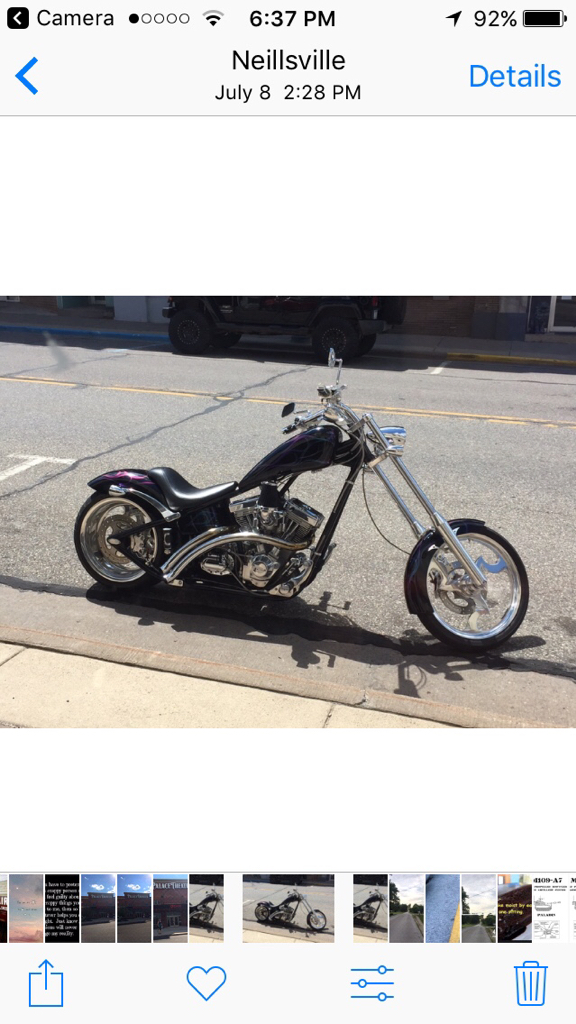

    Was heading up to the cities (mpls/St Paul mn) last weekend to have some ele work done on 04 Chopper. Must have dropped a bold out of the shocks about 100 miles before I got there.
    Anyone know what a set of shocks cost????
    [​IMG]


    Sent from my iPhone using Tapatalk

  11. KaptinAmerika

    KaptinAmerika Well-Known Member

    Joined:
    Mar 16, 2008
    Messages:
    4,584
    Likes Received:
    1,427
    Trophy Points:
    113
    Location:
    USA
    Progressive 422s are in the $420 range
    For others who can't afford them or don't want to spend that much there are others in the $200 ranger. Neither include bolts.

    jor43387 likes this.
  12. Spikes05

    Spikes05 Member

    Joined:
    Nov 8, 2016
    Messages:
    131
    Likes Received:
    196
    Trophy Points:
    43
    Location:
    Lodi California
    My Bike(s):
    05 bulldog
    First Name:
    Jerome
    I have an 05 bulldog and I have the progressive 422 heavy duty shocks on it. No problems at all the best ride I have ever had.



    Sent from my iPhone using Tapatalk
