Red letter Y on left side of speedometer

Discussion in 'Help Wanted' started by willywill4765, Mar 16, 2017.

  1. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US
    It is lit up red just wondering what this means.

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  2. SKOGDOG

    SKOGDOG One of the old ones.

    Joined:
    Sep 21, 2009
    Messages:
    1,305
    Likes Received:
    1,929
    Trophy Points:
    113
    Location:
    Pittsburg,Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    My 2010 Bagger has a yellow image of a tiny V-twin engine on the left side of the speedo, but it's a 'check engine' light. I don't think it ever shows red.

    chubs likes this.
  3. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US
    [​IMG]

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  4. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US

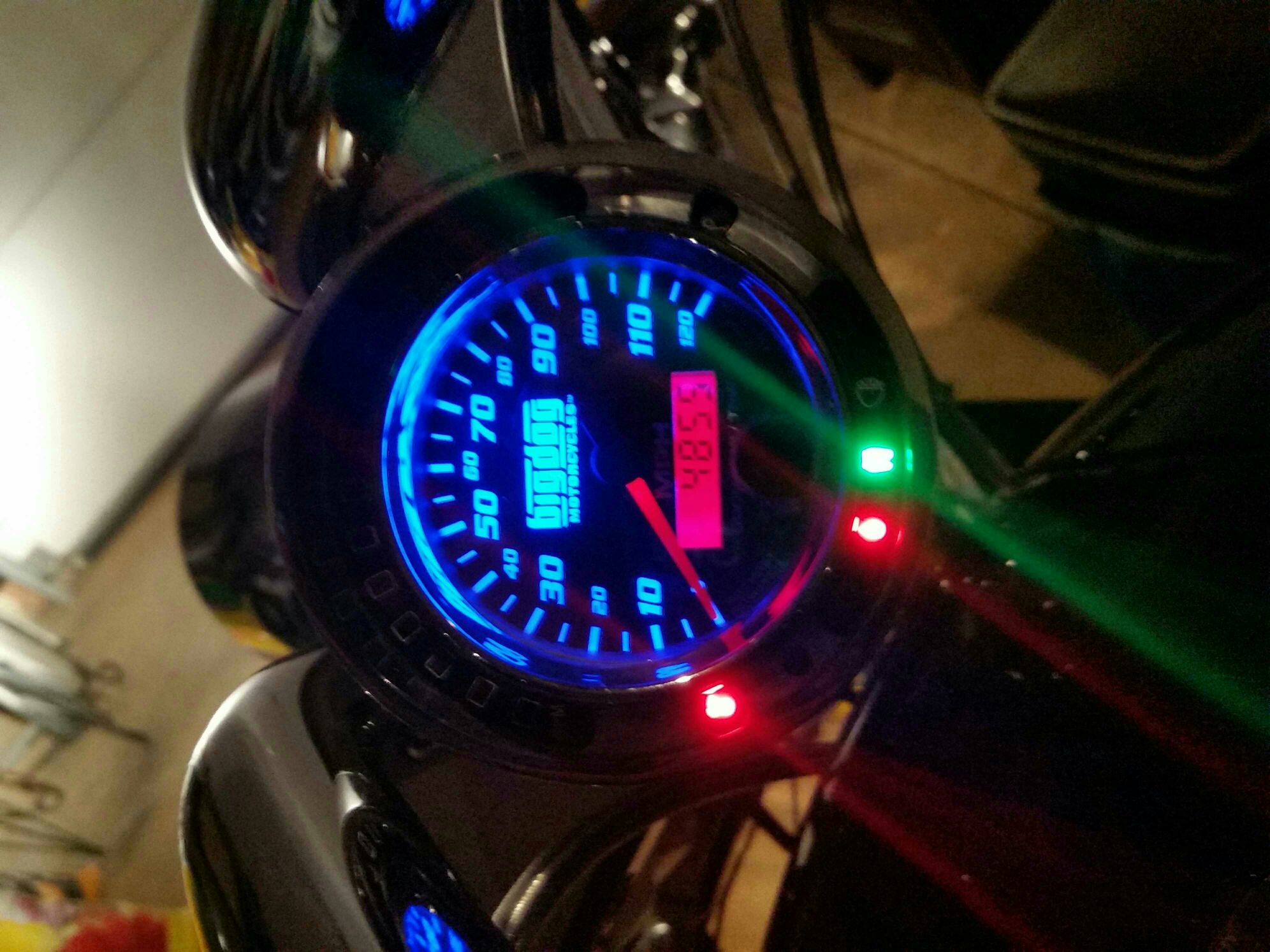

    It's the red light on the left Center of the speedo is there is the letter Y not sure if you can see in the picture that stays lit

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  5. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  6. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US
    It's a 2007 BigDog bulldog

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  7. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US
    Here is a picture with bike turned off. You can clearly see the letter Y middle left side of speedometer. 2007 bulldog does anyone know when y is lit on what that means. Check engine etc.


    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  8. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  9. BigDogRick

    BigDogRick Active Member
    Supporting Member

    Joined:
    Sep 16, 2012
    Messages:
    507
    Likes Received:
    527
    Trophy Points:
    93
    Location:
    Phoenix, AZ
    My Bike(s):
    2000 Big Dog Vintage Classic, 2008 HD Fatboy
    First Name:
    Rick
    First time I have seen it as there is no such light on my vintage but is sure looks like a twin engine to me and I would assume means check engine.

    PacoPetty and chubs like this.
  10. Matheny 514

    Matheny 514 Active Member

    Joined:
    Apr 27, 2013
    Messages:
    834
    Likes Received:
    1,463
    Trophy Points:
    93
    Location:
    Auburn, Alabama
    My Bike(s):
    2005 Big Dog Ridgeback
    First Name:
    Justin
    That is a V-Twin symbol for check engine light.

    Butch Cassidy, PacoPetty and chubs like this.
  11. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US
    Is there something that I can plug into the engine to figure out what's causing the light to come on

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  12. bruce

    bruce Active Member

    Joined:
    Mar 9, 2008
    Messages:
    612
    Likes Received:
    76
    Trophy Points:
    28
    Location:
    fawn grove, pa
    My Bike(s):
    2006 BIGDOG K-9
    First Name:
    Bruce
    you need a laptop, a usb cable ( but it is a little different type ) and s&s was giving away the software program for free because big dog had closed down. I do not no if they still are. with this you can read everything to help find problems. If you can get this, you can call S&S when you have hooked up and they will help you in most cases for free. they have been great help to me over the years.

    PacoPetty and chubs like this.
  13. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US
    Thank you very much I will try logging on to S&S website and see what happens. I just drove it around the block and it kept cutting out on me after a couple minutes it will restart and ride fine and then do the same thing all over again

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  14. SKOGDOG

    SKOGDOG One of the old ones.

    Joined:
    Sep 21, 2009
    Messages:
    1,305
    Likes Received:
    1,929
    Trophy Points:
    113
    Location:
    Pittsburg,Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    Strokers on Dallas has all of that BDM software. The trouble light came n in my 2010 Bulldog when we were down that way and it turned out to be a common thing--the O2 sensor. Bruce's suggestion to call S&S is solid....They have guys who get paid to solve problems for S&S consumers.
    You might give Derek a call at 214-357-0707. Don't know where you live, but they are in Dallas. I have an idea that some of the members here might know of other former BDM dealerships that still have the diagnostic software available--I'll bet Gateway in St. Louis might help you out too. Maybe you should consider starting a new thread for that Info.
    I found out with my EFI Harley that it doesn't take much to screw up the calculus used the computer program. The HD had a heat sensor go out, and it did all kinds of weird stuff...$40 and 20 minutes to fix. One glitch can ricochet into the damndest symptoms.

    chubs and PacoPetty like this.
  15. Slick117

    Slick117 Active Member

    Joined:
    Dec 1, 2015
    Messages:
    412
    Likes Received:
    1,105
    Trophy Points:
    93
    Location:
    New hampshire
    My Bike(s):
    2006 ridgeback
    First Name:
    James
  16. bruce

    bruce Active Member

    Joined:
    Mar 9, 2008
    Messages:
    612
    Likes Received:
    76
    Trophy Points:
    28
    Location:
    fawn grove, pa
    My Bike(s):
    2006 BIGDOG K-9
    First Name:
    Bruce
    If it is fuel injected, check fuel pressure, check manual I think it is 60 psi. I had a friend I helped who had same problem. his fuel pump was only about 35 psi , bike ran but poorly and would cut out also. he did not no it was running poorly until a new pump was installed - big difference. most of the manuals are here on this site, just ask and download - manual is a must have.

    chubs likes this.
  17. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US
    Bruce, thanks I will check that and also look for a manual, I know I definitely need one of those

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
  18. SKOGDOG

    SKOGDOG One of the old ones.

    Joined:
    Sep 21, 2009
    Messages:
    1,305
    Likes Received:
    1,929
    Trophy Points:
    113
    Location:
    Pittsburg,Kansas
    My Bike(s):
    2008 K9-2010 Bulldog Bagger
    First Name:
    Rick
    If it is your fuel pump, Bruce is correct--the manual says 58-62 psi. You check it by using the the schrader valve (like a tire valve) by the frame support under your tank (rt side). Viking had some problems with his, and he bought a rebuild kit from Big Dog in Wichita (316-260-8039). I got one too and rebuilt mine just because it sounded funny and I didn't trust it. Believe me, if you price a new fuel pump and then look at the $125-150 to rebuild, you'll know what to do. Not a real challenging task, but you have to drain and remove the tank, etc. Took me 2 days!
    Here is a schematic of my pump, and a drawing of the location in the tank (it's in right half as you are sitting on the bike). The last image is what it looks like assembled on the panel that fits in the tank.

    image.jpeg image.jpeg image.jpeg

    #18 SKOGDOG, Mar 19, 2017
    Last edited: Mar 19, 2017
    chubs likes this.
  19. bruce

    bruce Active Member

    Joined:
    Mar 9, 2008
    Messages:
    612
    Likes Received:
    76
    Trophy Points:
    28
    Location:
    fawn grove, pa
    My Bike(s):
    2006 BIGDOG K-9
    First Name:
    Bruce
    should think about replacing the sock on fuel pump also, If that ends up being problem, after repair bike ran better then ever but some months later - ended up have to replace the sock - it can be pricey I think it was about $125.00, maybe check around and try and find a better price, all of this work was on a WOLF

    chubs likes this.
  20. willywill4765

    willywill4765 Member

    Joined:
    Mar 16, 2017
    Messages:
    28
    Likes Received:
    27
    Trophy Points:
    13
    Location:
    US
    Thanks Bruce I will take a look at that here in a few minutes

    Sent from my SM-G900P using Tapatalk

    chubs likes this.
