Wiring

Discussion in 'Help Wanted' started by bigkelk9, Jan 7, 2018.

  1. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,230
    Likes Received:
    5,749
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    So, I have a set of LED lights on my bike right now that I am replacing with a better set with a half light strip. The purpose for the lights really is visibility more then style even though I think they look pretty gnarly! Question being is which wire to my tail lights is my Signal and which is my brake? Tested them both and they both gave power when operating both functions, brake or signal.. makes no sense to me. 20180107_110430.jpg

  2. bdm7250

    bdm7250 Guru
    Supporting Member

    Joined:
    Jun 3, 2016
    Messages:
    6,903
    Likes Received:
    17,066
    Trophy Points:
    113
    Location:
    Hamilton Ontario Canada
    My Bike(s):
    2008 BD Mastiff 2008 AIH Slammer
    First Name:
    Doug
    Not sure about your case, but Sue's Tejas is black-ground, purple-running light, and blue-signal/brake. Are both getting power when the bike is running? Tejas has both hot until the bike is running, once running just the running lights are on.

  3. heybaylor

    heybaylor Active Member

    Joined:
    Feb 5, 2014
    Messages:
    694
    Likes Received:
    861
    Trophy Points:
    93
    Location:
    East Texas
    My Bike(s):
    Fatboy,Sportster,CX500, 2001 Pitbulll, Road Glide
    First Name:
    Carl
    turn on key, hit turn signal, the steady power is the running light, the flasher on-off- is the brake /flasher.
    black meter probe to gnd, red to wire .
    meter set on DC voltage

    Rottweiler and pknowles like this.
  4. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,230
    Likes Received:
    5,749
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    Lol.. y'all crack me up.. damnit Kevin I did but I'm trying to do it quick n easy without back probing my fuse pannel, which requires me to pull off my side panel on the right side of the bike.. and as far as back probing I said I got power to both wires.. lol.. guess I'll pull the fluke out damnit.. I have voltage but now I'll check how much because using a test light obviously ain't working..

    #4 bigkelk9, Jan 7, 2018
    Last edited: Jan 7, 2018
    dentdude36 likes this.
  5. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,861
    Likes Received:
    36,635
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    Release the red wire pin from the connector and see what ya got or don't got. Goes from der

  6. Rottweiler

    Rottweiler Well-Known Member
    Supporting Member

    Joined:
    Sep 8, 2013
    Messages:
    1,103
    Likes Received:
    1,407
    Trophy Points:
    113
    Location:
    Elizabethtown, PA.
    My Bike(s):
    2004 Chopper, 2014 HD Road King CVO, 1985 FXWG
    First Name:
    Todd
    :agree: Refer to post 4

  7. Rottweiler

    Rottweiler Well-Known Member
    Supporting Member

    Joined:
    Sep 8, 2013
    Messages:
    1,103
    Likes Received:
    1,407
    Trophy Points:
    113
    Location:
    Elizabethtown, PA.
    My Bike(s):
    2004 Chopper, 2014 HD Road King CVO, 1985 FXWG
    First Name:
    Todd
    They are the same wire. One is (Brake/Turn) one is parking and the other ground.
    If no turn single is on then Brake, If brake and turn single then that side blinks.

  8. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,230
    Likes Received:
    5,749
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel

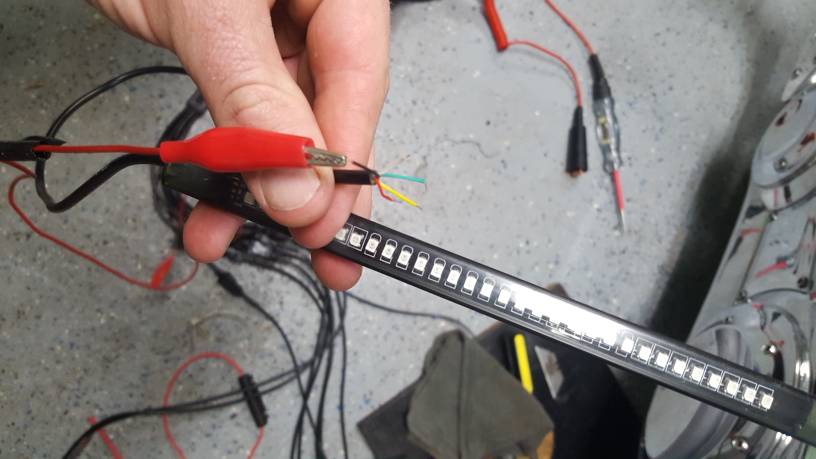

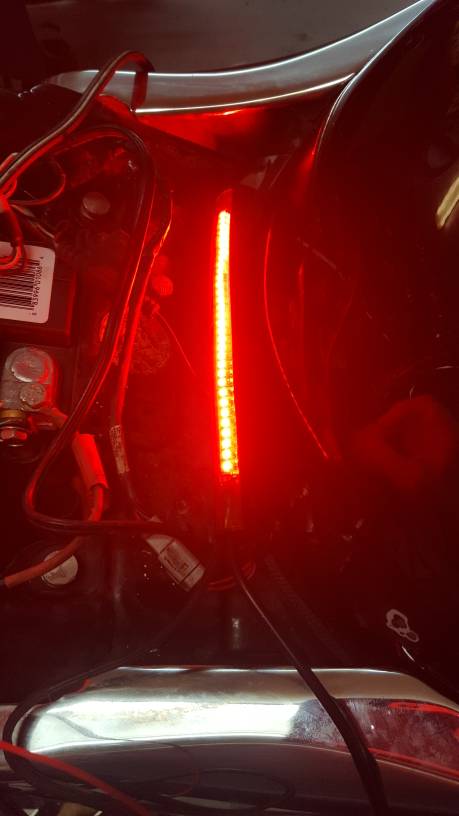

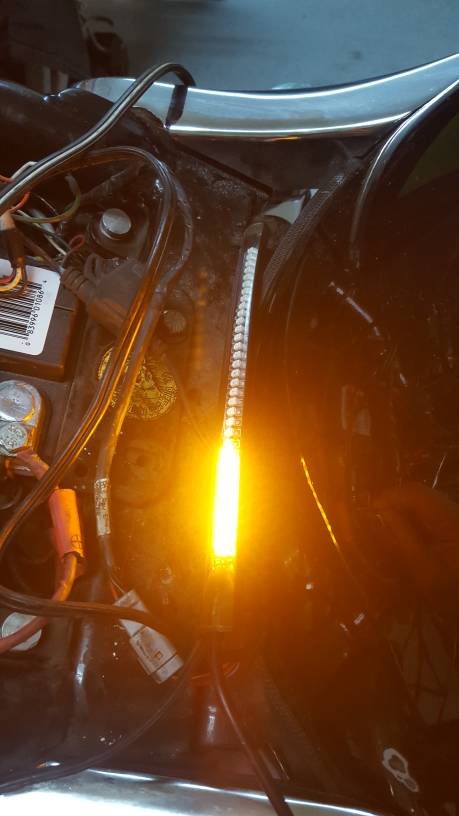

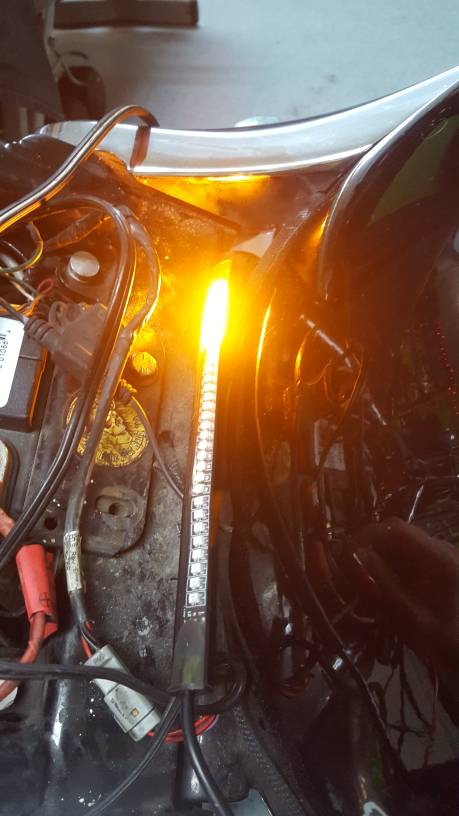

    So this is going under the rear of my fender to help illuminate my ass.. [​IMG][​IMG][​IMG][​IMG]

    Sent from my SAMSUNG-SM-G920A using Tapatalk

  9. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,230
    Likes Received:
    5,749
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    So tie my brake and turn together... makes no sense electrically.. that' where I'm trying to get some help.. how this one works is
    White - brake
    Red- run
    Yellow -turn
    Green - turn
    Black - ground

  10. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,230
    Likes Received:
    5,749
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel

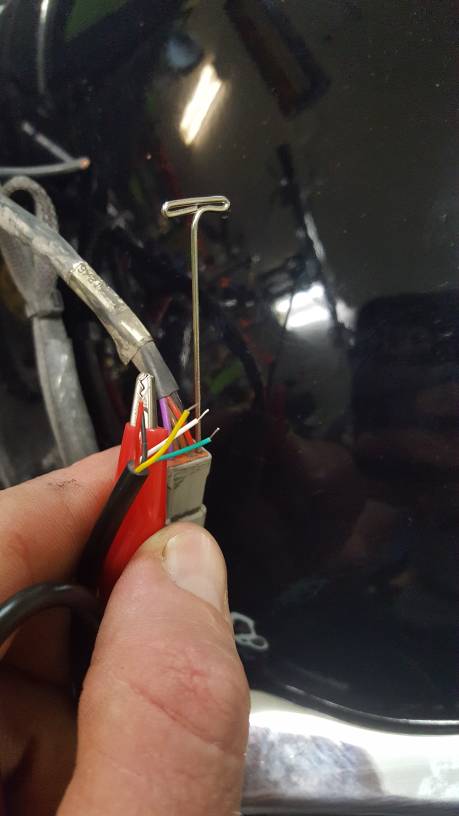

    Okay, so when I rewired this, I followed the way it was wired from the factory as far as my power points, just routed them through a fuse panel. Using the back probe pin and even the pins on my meter, it pulsates power.. what am I missing.. kind of feel like a jack ass cuz elecectrical is my thing[​IMG]

    Sent from my SAMSUNG-SM-G920A using Tapatalk

  11. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,230
    Likes Received:
    5,749
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel

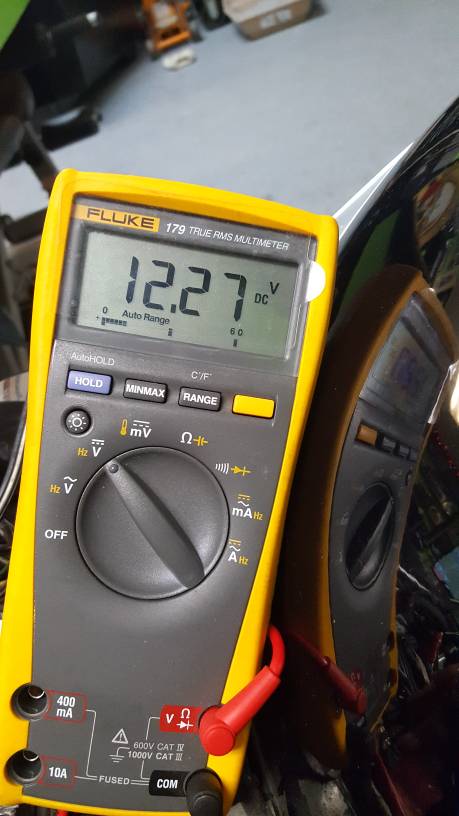

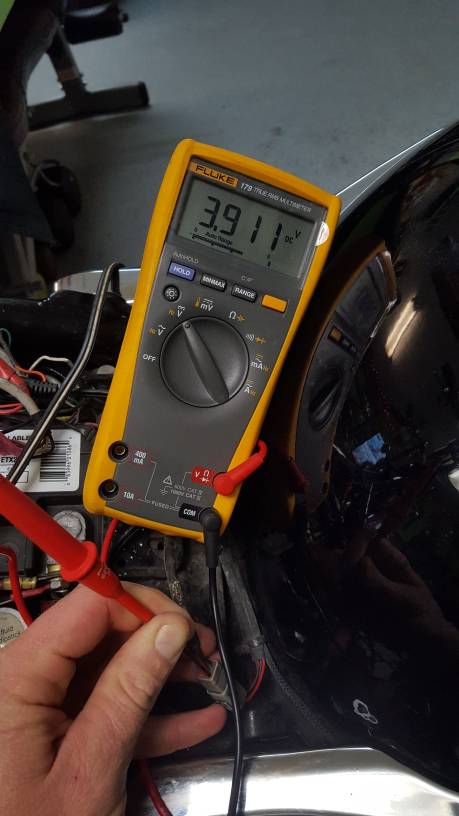

    Flashes between these two voltages for signal lights and when I hit brake, it goes from 3.9 to the 12.2[​IMG][​IMG]

    Sent from my SAMSUNG-SM-G920A using Tapatalk

  12. pauldeepsea

    pauldeepsea Well-Known Member

    Joined:
    Jun 15, 2008
    Messages:
    4,604
    Likes Received:
    5,180
    Trophy Points:
    113
    Location:
    California
    My Bike(s):
    2004 Pitbull/ridgeback , 2006 big bear sled 300
    First Name:
    Paul
    I haven’t had to re wire the big dog but on the big bear one of the wires are running/ turn and the other is brake.

    bigkelk9 likes this.
  13. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,230
    Likes Received:
    5,749
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    I am just Gunna have to trace it back to my fuse pannel to find out what does what because both have power for both functions..

  14. TapioK

    TapioK Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    2,975
    Likes Received:
    4,652
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    A really longshot from me who doesn’t much understand: I remember sometimes (specially in French Cars) if you have a bad ground a blinker earths thru a brake light and makes it blink too. Prolly not the reason, but a just a thought

    bigkelk9 likes this.
  15. bigkelk9

    bigkelk9 Well-Known Member
    Supporting Member

    Joined:
    Sep 7, 2015
    Messages:
    3,230
    Likes Received:
    5,749
    Trophy Points:
    113
    Location:
    Southeast Texas / Southern California
    My Bike(s):
    07 big dog k9
    First Name:
    Kel
    Lol.. no.. everything works fine, I'm trying to install this light on the rear fender to help illuminate a bit better from behind..

    chubs likes this.
  16. BWG56

    BWG56 Guru

    Joined:
    Jul 29, 2008
    Messages:
    20,861
    Likes Received:
    36,635
    Trophy Points:
    113
    Location:
    USA
    My Bike(s):
    Big Dog, SpyderF3
    First Name:
    Ker
    If you wanna catch attention from behind, When you come to a stop, blip the brake handle erratically like Morse code.

  17. TapioK

    TapioK Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    2,975
    Likes Received:
    4,652
    Trophy Points:
    113
    Location:
    Naples, FL / Finland
    My Bike(s):
    K9 -08, Chopper -03, Fat Boy (-97), BMW 1150GS -95
    First Name:
    Tapio
    Hehehe, looking at your pic of the wires of blinker made me remember my -03 has 3 wires too. The law in Europe said US system where the blinker is actually blinking brake light is illegal hence the odd looking two light combos are you see in EU Dogs... I was looking for an easy solution where I wouldn't need to fuck the whole harness. My electrical guru friend was looking into it and was cursing the small wires, at that point they changed the law and Dot is now legal he just might still remember what his plan was ...

    Nutzy likes this.
  18. Little-Boo

    Little-Boo Well-Known Member
    Troop Supporter Supporting Member

    Joined:
    Nov 13, 2007
    Messages:
    4,355
    Likes Received:
    1,723
    Trophy Points:
    113
    Location:
    McAllen, Texas
    My Bike(s):
    2013 Tri-Gluide, 2006 Mastiff, several Mods to many to list
    First Name:
    Carlos
    All models use a type B system, which means that the brake function is integrated with the taillights and turn signal. If no turn signal is in operation, then both brake lights will come on with the input from either brake switch. If the brakes are applied with a turn signal in operation the brake light will NOT illuminate on the side that is flashing as a turn signal.

    Carlos :whoop:

  19. Hirter6Pack

    Hirter6Pack Not Quite A Guru
    Supporting Member

    Joined:
    Oct 31, 2015
    Messages:
    2,349
    Likes Received:
    5,084
    Trophy Points:
    113
    Location:
    Saint Joseph Mo
    My Bike(s):
    2004 Mastiff
    First Name:
    Rick
    According to the 04

    bigkelk9 likes this.
  20. heybaylor

    heybaylor Active Member

    Joined:
    Feb 5, 2014
    Messages:
    694
    Likes Received:
    861
    Trophy Points:
    93
    Location:
    East Texas
    My Bike(s):
    Fatboy,Sportster,CX500, 2001 Pitbulll, Road Glide
    First Name:
    Carl
    maybe if you would disconnect the led out of the tail light you wouldn't have the "back circuit from the led ".
    then check the wires going to it .
    life was simple when we used filament bulbs :oldconfused:
