2004 Chopper wiring question

[JustDennis]

So I just got a 2004 Chopper. Was told the wiring was redone and it has been. Doesn’t look like a kit. Looks like someone did a pretty decent job just retiring? Thoughts?


Sent from my iPhone using Tapatalk



[HMAN]

So I just got a 2004 Chopper. Was told the wiring was redone and it has been. Doesn’t look like a kit. Looks like someone did a pretty decent job just retiring? Thoughts?


Sent from my iPhone using Tapatalk

Pics please. This will make ID easier. Always good to know what ur dealing with.



[JustDennis]

Posted from my phone and it didn't add the pic. Tried again. Sorry



[HMAN]

Can't say Ive seen a rewire using Littlefuse before. Perhaps someone else is familiar with them?



[Rottweiler]

Same here. It looks like a good job. But never seen one like that. Take another picture with the cover removed.



[JustDennis]

Same here. It looks like a good job. But never seen one like that. Take another picture with the cover removed.

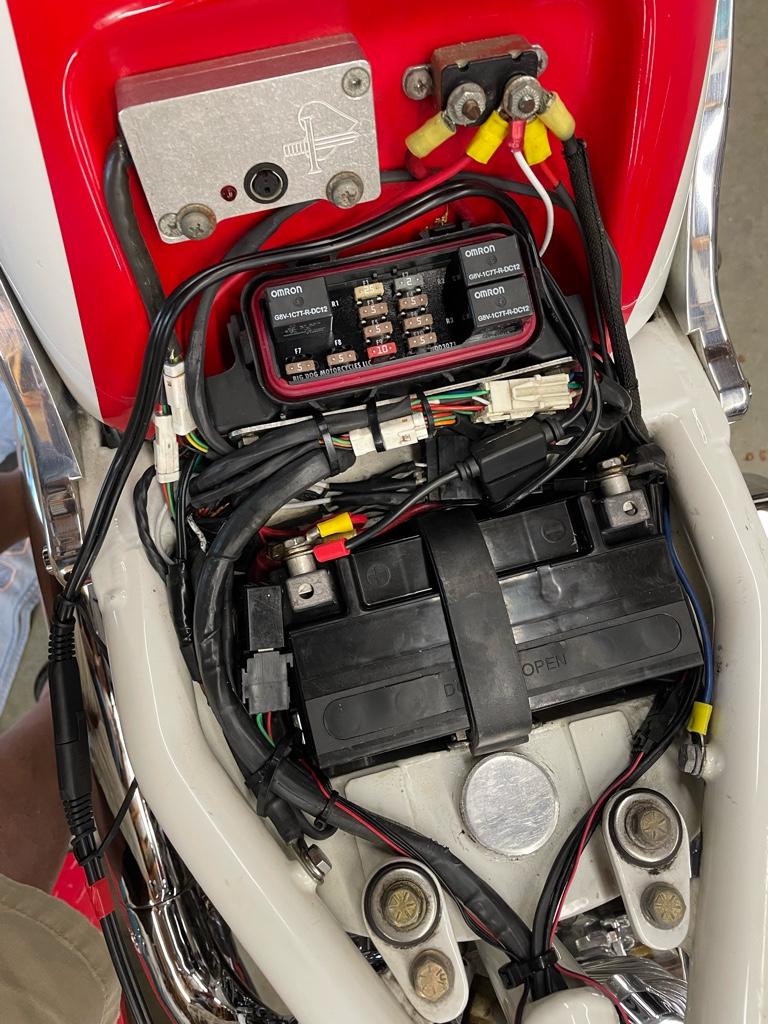

Finally got around to another picture

Sent from my iPhone using Tapatalk



[Th3InfamousI]

Finally got around to another picture

Sent from my iPhone using Tapatalk

That's the PDM kit, was Big Dogs replacement for their EHC awhile back. Not sure it was a valid replacement, I've never seen one last very long, but I'm sure there's a few out there that did. The power module fails. The whole setup is too big to fit in the battery tray so they just Velcro taped the metal box power modules to the underside of the battery trays.

Sent from my moto z4 using Tapatalk



[Mikeinjersey]

Finally got around to another picture

Sent from my iPhone using Tapatalk

Looks nice and neat! The fact that it says Big Dog Motorcycles LLC would make me think they did rewire. Maybe the EHC crapped out during warranty and they chose to wire it this way.
I would pull each fuse and relay one at a time and document which circuit they are protecting or operating. Could come in handy if you have any electrical issues down the road.
I'm sure if you were to contact WSW or HDM they would know the history.
