CRANKCASE MARBLES

PHATASS

Active Member
Looks like I'll be tearing into the crankcase this weekend. Started to develop what sounds like marbles or a whirring sound down by the crank cover on right side. Checked it out with a stethescope and sure enough...noise is right in that area. The noise comes and goes and is not constant but can definately tell when the whirring noise starts. Thinking the right main bearing, roller, or maybe even a cam :<(

Last edited:

BadBrad

2005 Pitbull
If it's the cam and you're running a stock cam (I think a .585) I have one that came out of my '05 you're welcome to have.


PHATASS

Active Member
If it's the cam and you're running a stock cam (I think a .585) I have one that came out of my '05 you're welcome to have.
Appreciate the offer Brad! I'll let ya know this weekend what I find. My stock cam is a .569 but if you have a .585, I can definately use that. Can you send a 12 pack of beer via USPS? :cheers:

Last edited:

Five Five

Well-Known Member
Sorry to hear "Phat" I have had my round with lowerend issues.... from you description sounds like your on the right track.... keep us posted :2thumbs:


PHATASS

Active Member
Sorry to hear "Phat" I have had my round with lowerend issues.... from you description sounds like your on the right track.... keep us posted :2thumbs:
Thank's Five...I'll give an update this weekend. I remember reading a while back about a lower end problem you had but can't remember exactly. Curious what it was?


PHATASS

Active Member
Started the inspection and looks like the cam and rollers are good to go but still need to look at the right main pinion bearing. Anyone have any tips on how to get to the bearing?


05chop

Well-Known Member
I know when a piston breaks apart or scores it will sound like marbles.I had a small screw fall into the intake(butterfly shaft) many moons ago noise would come and go then it failed a valve. If you have metal failure inside engine a cheap tool is cut open oil filter and look for metal. Most of the time it will show up on the spark plug with a damaged tip.Post lots of pictures for us too.


PHATASS

Active Member
Thank's chop. The noise is definately coming from the crankcase area. The only other thing I haven't checked is that right main bearing. Reading up on a few instructions from the s&s site to figure out how to get to it and open to suggestions. I also ran a magnet through the oil in the crankcase and fortunately no metal was found.

Last edited:

PHATASS

Active Member
Anyone know how to get to the right main bearing in the crankcase??? Do you have to split the case?

Last edited:

PaulHart

Well-Known Member
Have you checked the vent tube in the gas tank for that rattle? Just Kidding.....not really...ask Raywood about that....Have you checked the vent tube in the gas tank for that rattle?


PHATASS

Active Member
Have you checked the vent tube in the gas tank for that rattle? Just Kidding.....not really...ask Raywood about that....Have you checked the vent tube in the gas tank for that rattle?
Yes sir....all well in the tank. It's more of a whirring sound that comes and goes whether sitting still or moving, pointing me more towards a worn bearing.


woodbutcher

Mr. Old Fart member #145
Staff member
Have you checked the vent tube in the gas tank for that rattle? Just Kidding.....not really...ask Raywood about that....Have you checked the vent tube in the gas tank for that rattle?
that was the top end of the motor, paul. :roll::roll::roll::roll:


Five Five

Well-Known Member
Yes sir....all well in the tank. It's more of a whirring sound that comes and goes whether sitting still or moving, pointing me more towards a worn bearing.
Your on the right track..... my rod bearing failure began with the whirring sound, just as you described .... to answer your question regarding acsessing your main bearing right side, you need to bench it and split the cases.


MARV

Well-Known Member
check run out on the crank. think its .003

if good i would check the cam bearing.


PHATASS

Active Member
check run out on the crank. think its .003

if good i would check the cam bearing.
Run out was my next step Marv, thanks! The cam needle bearing looks good and is the Torrington. In the mean time this is what I have found. Looks like my cam and bushing have significant grooves worn into them. Now the question is what's causing it?

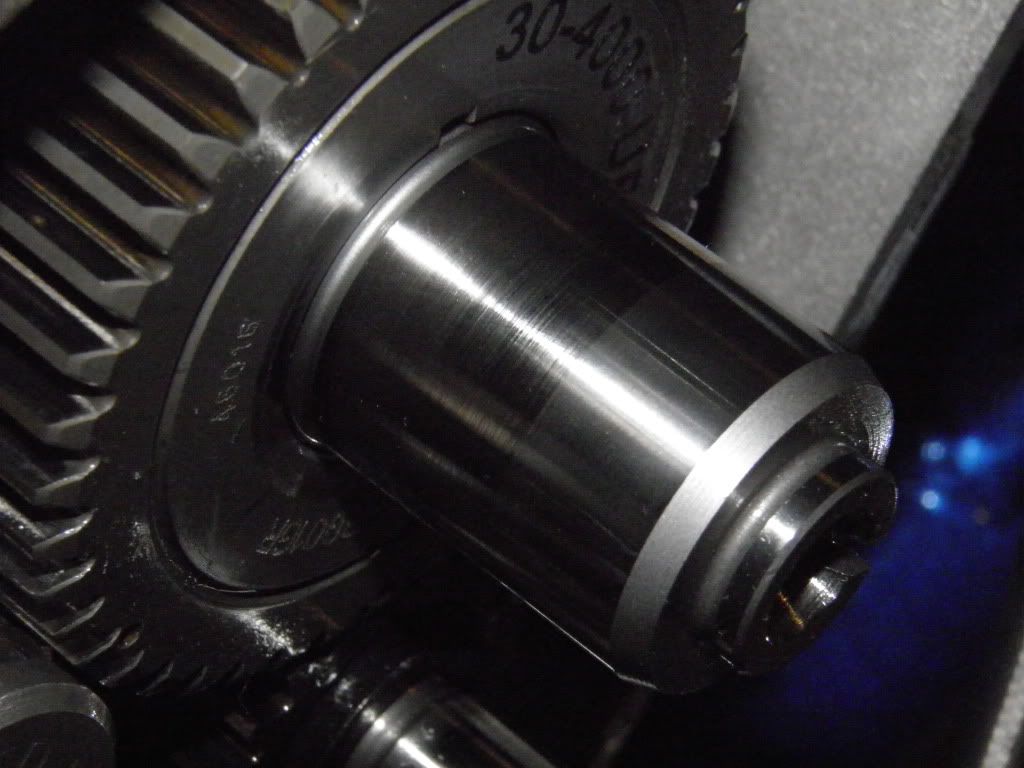

END OF CAM SCORING

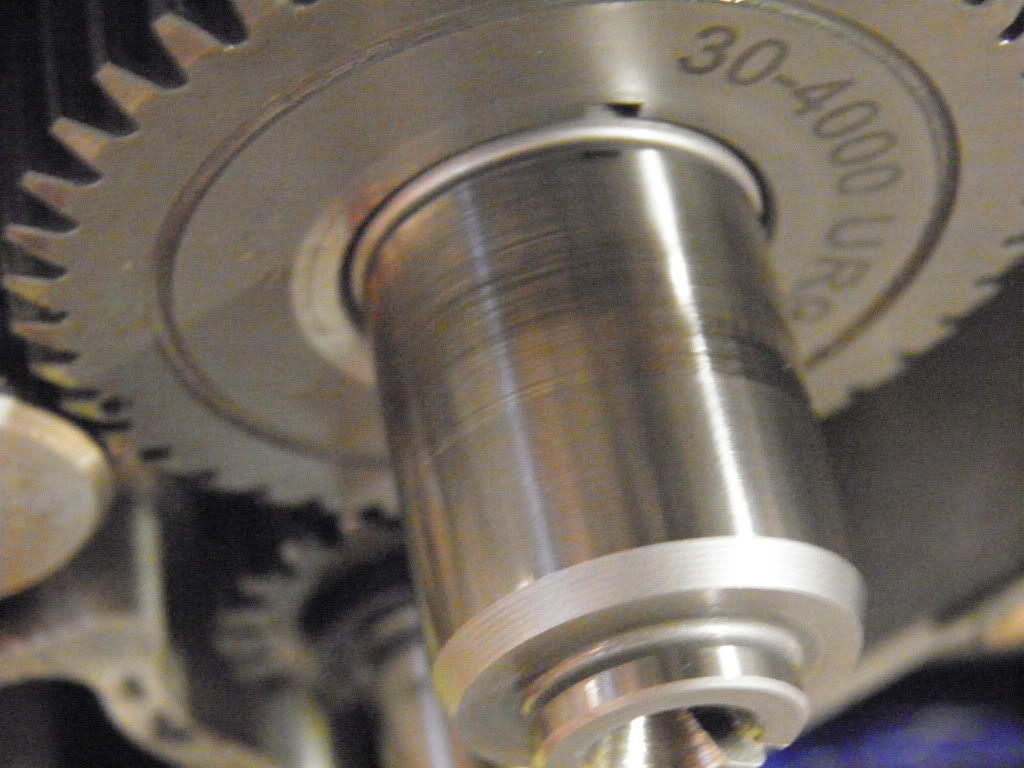

END OF CAM SCORING

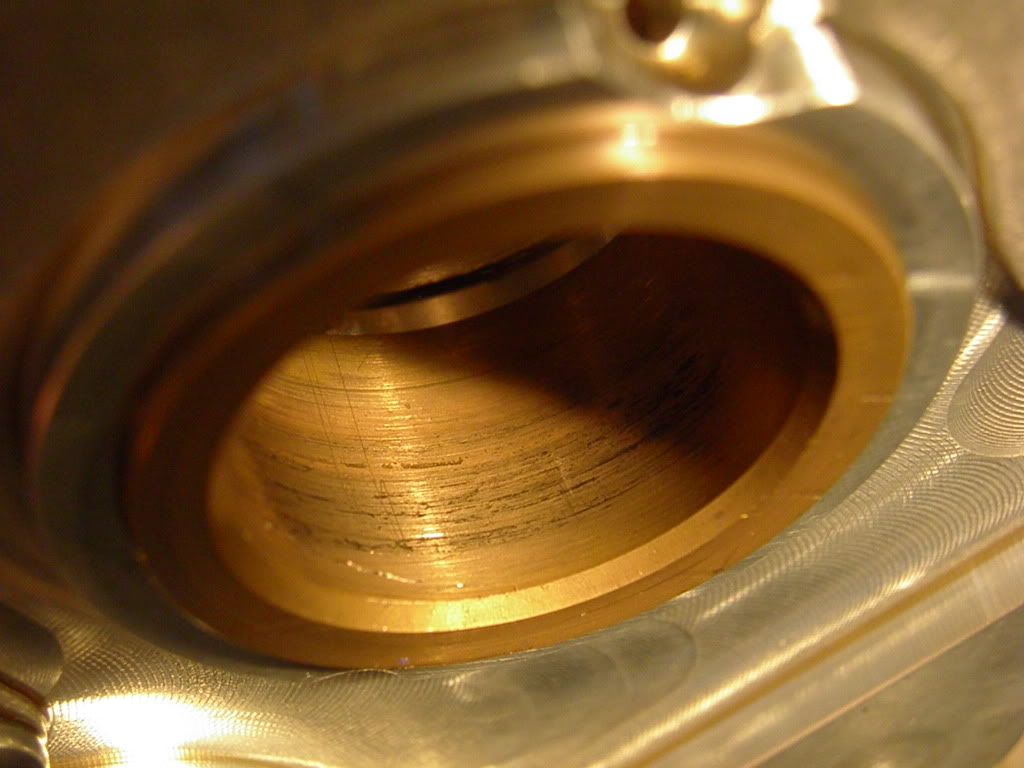

CAM COVER BUSHING

Last edited:

Bowhunter

Well-Known Member
Brian, I am assuming the photo is of the bushing in the cam cover and the end of the cam. It appears that the bushing may be the cause of your noise. If so, its time for a new cam and bushing. That would be a lot better than the crank bearing and a full tear down.
