Tail Lite PLUG

[mastiff1969]

i cant figure out how to take the ( small 3 wire plug )off the wires ,so i can change the bolt and tail lite. Has any one had to do this? thanks



[Eric]

I use a dental pick.. but some here have used a safety pin.. be carefull... take your time..& make sure you label what goes in each socket..



[mastiff1969]

witch side do i put the pin in, from the wire side, or where it plugs in2 the LED, and what am i tryin to release, i cant see much, thanks looks like im gona finish a 6pack b4 i get the plug off



[Eric]

hang on I think I got a exploded view... let me look...



[BigDogBro1]

witch side do i put the pin in, from the wire side, or where it plugs in2 the LED, and what am i tryin to release, i cant see much, thanks

There should be a small open square hole at the open end of the plug on ONE side. This is where the contact pin latch hook snaps into. Take a small paperclip end and gently push in the latch tab then gently pull out the wire from the plastic housing.

I think these are Molex type or similar JST connectors and plug onto a pin header mounted on the PCB.



[mastiff1969]

ok , im im holdin



[mastiff1969]

gona look foor it now thanks



[Eric]

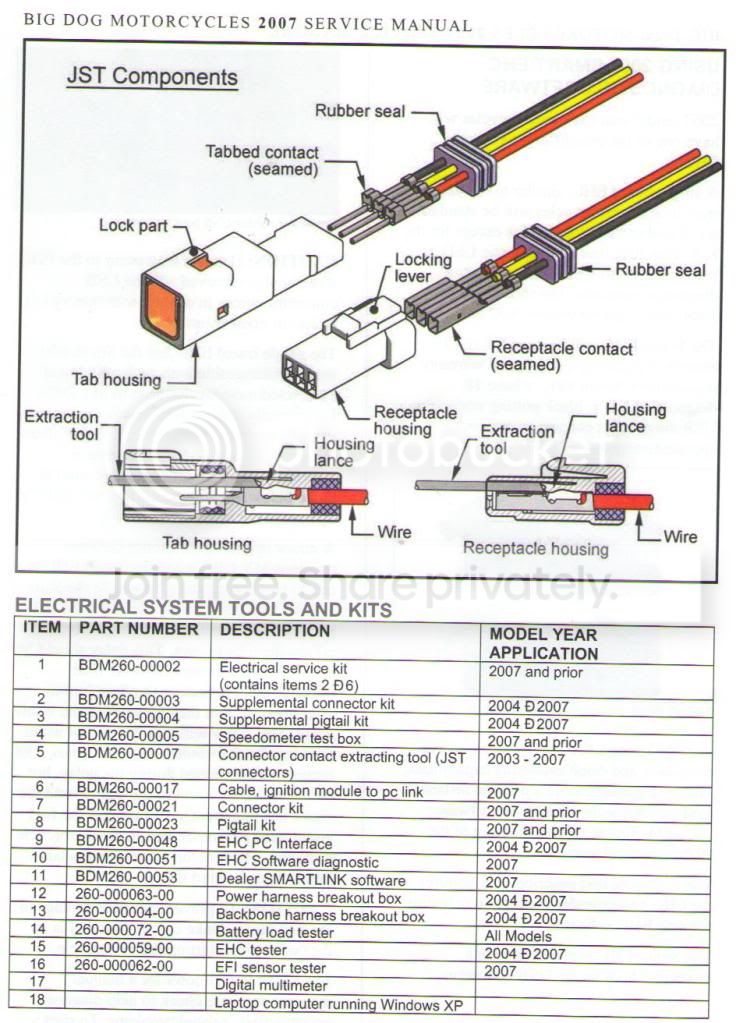

alright took me a min... see if this helps.... the best I remember the tail light plugs come apart the same way..its been awhile since I had to take mine apart..

unlock it from the frt end oppsite the end the wires enter the plug..



[mastiff1969]

thanks Bro, gona try it again using this pic. get back with the results



[mastiff1969]

i feel like a dumd ass, but got it fixed, thanks allot for all the help.
