vulcan dual coil setup

[REMorris]

If anyone has the schematic on this modification (the one in the gallery section has gone away) can you please repose it or send it to me.

I know this should be posted in the tech area, but I am hoping to get everyone to look for it.

Thanks guys

Richard



[jimizee028]

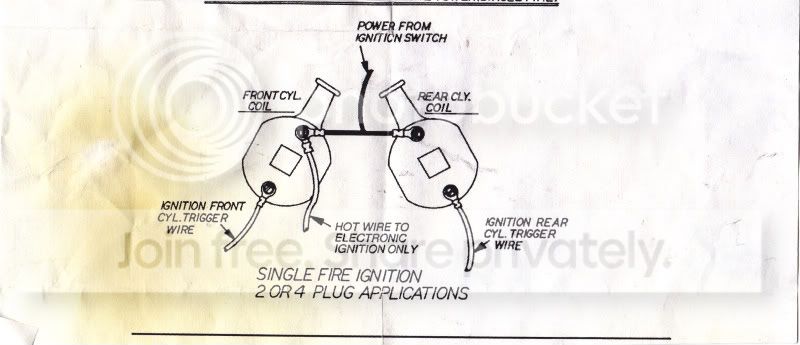

Hope this helps.....
I have an 07 chopper and these are the colors of wires
black and orange to ignition switch I used original BDM switch
yellow to ft coil
red and blue to rear coil
