K9 LED

[bigtrav6442]

I have looked this bike over and over to try find the switch or button or whatever turns on the LED's on this bike...it has 12 LED's all over it, but not sure where the switch is...any ideas where one might be hidden??? I tried to contact the previous owner, unfortuantely it was a repo from the bank and they won't give out any info on who he is. It is probably something right in front of me, but it is driving me crazy...can anyone give any advice???



[mobsta]

maybe no switch,are they on or off,if off maybe disconnected,look under seat?



[bigtrav6442]

Yeah, I looked under seat and saw a box with a bunch of lights..is that the ehc??? There was 2 fuses and both of them were good. I can't get them to come on though...I tried to follow the wires but still no luck. What will I be looking at on a K9 without the leds under the seat?



[mobsta]

the box is the ehc



[bigtrav6442]

I figured he would have the LED's somewhere easy to turn on but I haven't had much luck in finding it...is the USB connected to the ehc also??



[BWG56]

I installed my leds and didn't use the switch. I turn mine on and off by a remote. Look around under the seat for another module other than the EHC. Maybe if you remove the side covers you will find it.
Neon and LED lights for your motorcycle

Check the bottom of the LEDS page



[mobsta]

yup



[dingo]

Mine are remote operated as well..



[bigtrav6442]

If that is the case...what will I need to do???



[bigtrav6442]

I just went and looked it over...I saw a red and green light underneath the ehc...it lights up red when I turn the bike on and green after a second...there is also a "ant" wire wrapped around the top of the battery...any ideas?



[BWG56]

If that is the case...what will I need to do???

Find out the MFG from the controller (box) and order a remote.



[bigtrav6442]

Thanks Ker...I will try to find that box next weekend when I'm off and order one...thanks guys, I appreciate it...now if it would just stop snowing! Lol.



[linx]

Good thread. What's a good brand that does remotes? I've seen some sick installs that shine the front wheels with no wires showing. I'd like to see up close pics to the front wheel/fender lights to see how the wires are hid. Looks easy on the engine and rear to hide them.



[mcgroom]

I have some picture of a Texas Chopper we did last week.

Everything was clean and tight.

I will try to post today.

I may also have an extra remote that can be used. I will check into it.



[mcgroom]

This is something my partners wife worked on this weekend.

TBCclip1.flv video by mcgroom2173 - Photobucket

Getting pics uploaded now.



[mcgroom]

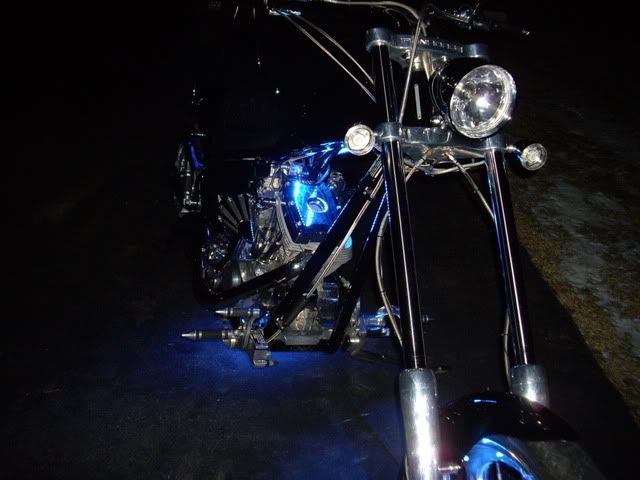

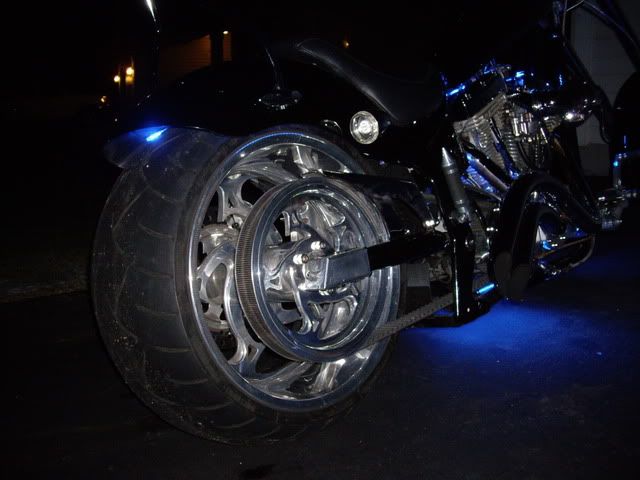

Some pics after install

The LED's tuck away very nicely.

The front fender was the only real challenge but once the wire was run along the brake lines, we zip tied them with the smallest we could find. We used Black since we felt they would stand out the least but Chrome Zip Ties are availiable as well.

We spent more time Heat Shrinking the wires than anything else.

There was the basic on/off remote availiable and the owner of the bike went with the top of the line remote.

Breathe Function, 3 Different Flash Settings, 100%/75%/50% or 25%. On/Off.

Worth the extra $'s in my opinion.

We were happy with the install and finish product.

We can get them for you and help you out with pricing as well if you are interested. :2thumbs:



[Splitlog]

look under the battery box itself...with lizard lights that is about the only place it will go with access while riding. i have the same set up..



[BikersDream]

I have seen many EHC’s destroyed from using chicken lights on a 2004,2005,and 2006 Big Dog motorcycle. Caution!!!!!!!



[rvrod]

I have seen many EHC’s destroyed from using chicken lights on a 2004,2005,and 2006 Big Dog motorcycle. Caution!!!!!!!

How do the lights effect the ehc does it backfeed through the battery or somthing?



[bigtrav6442]

Great looking bike Mick! I will be stocked to just know what color the lights on mine are, lol! Didn't take the battery box out yet, but I'm sure whatever I'm looking for is under the battery bracket...at least I'm guessing so, lol....heck, it can't really be anywhere else...can you post a pic of the main brain for the LEDs...so I have some idea what this thing might look like?
